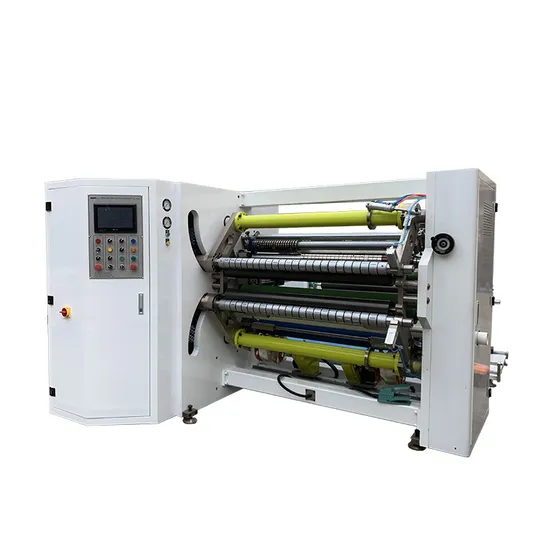

Vertical Shape High Speed Center Winding Type Non-Woven Fabric Tape Slitting Machine

Product Description

Product Description
This vertical slitting machine is used for rewinding and cutting jumbo roll of tape to smaller coils, workable for non-woven fabric tape, adhesive tapes and etc. Product Features
1. Independent unwinding station with EPC device
2. Pneumatic surface pressure of unwinding roll can avoid the bouncing phenomenon when unwinding adhesive tapes
3. Fully automatic constant tension control for unwinding
4. Trimmed scraps are wound traversely in reel to save operating space
5. Both two rewinding shafts on the same side, convenient for core loading and finish rolls unloading
6. Center winding method, the winding shafts are supported by a servo driven electric cylinder
7. Differential winding shafts can do consistant tension winding, especially friendly to products with large thickness tolerance
8. PLC centralized control, touch screen setting parameters, button switches operation
Product Parameters

Master roll width	800 - 1600mm
Master roll OD	800mm Max.
Minimum slitting width	5mm
Maximum winding OD	600mm
Speed	200m/minute
Core ID	50/75mm
Power source	3 Phase 380V,50/60Hz
Air source	>5kg/cm2

Detailed Photos
Packaging & Shipping
Certifications
FAQ
1. Do you provide installation and commissioning service after delivery?
Yes, if in field installation and commissioning requested, we can send well trained staff to the buyers' place. The buyer should pay the round way tickets and accomodation costs.
2. How do you do aftersale service?
Firstly we need the users to report the detailed situation of the machine performance by video call or email. If only software / program problem, we can solve the issue by remote computer assistance. If any hardwares need to be replaced, we will send the replacement. Freight should be paid from the user side.
3. Do you accept customized order?
Yes, almost all these kinds of machines are made according to the buyer's request. Firstly we need to study customer's request details, and then make the offer accordingly.
4. How to select the EPC sensor options?
Normally non-transparent tape suits to using photoelectric sensor, transparent tape uses untrasonic sensor. Sure we can provide both. The cost is not much.
5. How to select tension control options?
For adhesive tapes, it's better to use tapering type tension control. Automatic tension sensor is good for unwinding smooth low tolerance tape materials.
6. Can we see some existing machines before confirm the order?
Yes, there are some customers quite near our place. Welcome to visit us to inspect the machines.
