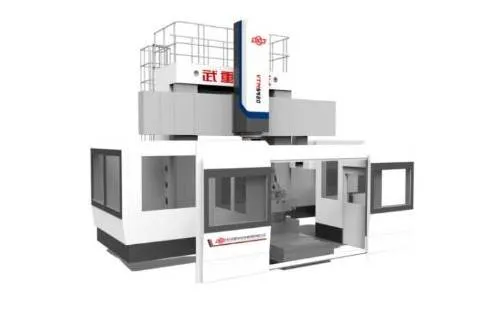

Vtm5916 Table Movable Type Vertical Milling and Turning Center / Lathe
| US$300,000.00-2,000,000.00 | 1 Piece (MOQ) |
Basic Info.
Type
Vertical Lathe
Processing Accessory
Centre CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Hydraulic Pressure
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Setting Mode
Table
Precision
High Precision
Certification
ISO 9001
Condition
New
Working Condition
No Dust, No Harmful Gas/Liquid.
Temperature
5-40
Relative Moisture
Less Than 85%
Power Supply
415V/380 50Hz
Transport Package
Wood
Specification
iron
Trademark
WZ
Origin
China
HS Code
8457101000
Production Capacity
50
Product Description
APPLICATIONVTM59 series turning and milling combined machine can complete turning, milling, drilling, boring and tapping by once set up. X/Y/Z/C 4 axis linked machining can be realized.
The machine is especially suitable for turning, milling, drilling, boring and tapping by once set up of small sized precision and complicated part.
The main performance characteristics: Table can travel back-force, with CNC Y axis. X/Y/Z/C can realize 4-axis linked machining. Table adopts high accuracy double row roiler bearing in radial for centering; in axial adopts large sized ball thrust bearing for supporting. Table can adopt double AC spindle motor drive; can realize high precision electric gap elimination. Toolhead ram travel adopts ballscrew pair transmission; guide way adopts pump per pocket closed type hydrostatic guide way of constant flow. Milling spindle is housed in toolhead; AC spindle motor drive; 2-shift gearbox speed change.
Main technical parameters:
| Item | Unit | Model | ||
| VTM5912 | VTM5916 | VTM5925 | ||
| Max turning job diameter | mm | Φ1250 | Φ1600 | Φ2500 |
| Max tuming job height | mm | 1000 | 1200/1500 | 1500/2000 |
| Table diameter | mm | Φ1050 | Φl400 | Φ2000 |
| Table max loading capacity | r/min | 5 | 8 | 16 |
| Table turning max speed | r/min | 300 | 250 | 200 |
| Table max torque | kN.m | 10 | 20 | 40 |
| Ram section size | mm2 | 280 | 280 | 280 |
| Ram max travel | mm | 1000 | 1000/1400 | 1400 |
| Milling spindle power | kW | 31 | 31 | 31 |
| Milling spindle max torque | N.m | 750/1000 | 750/1000 | 750/1000 |
| Milling spindle highest speed | r/min | 3000 | 3000 | 3000 |
Detailed Photos
Workshop
Package
Installation and commissioning
