Factory Price Sunward 6 Ton Mini Excavator Swe60UF with CE

Product Description

Detail images
Overview

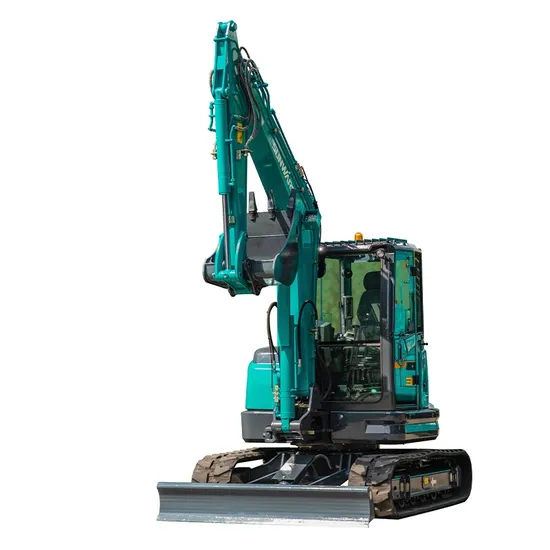

High-High-quality SUNWARD 6Ton Excavator SWE60UF Mini Crawler Excavator
The Sunward SWE60UF is a compact excavator featuring a zero-tail swing. Thanks to its design, the SWE60UF can offer great power at a reduced footprint, giving it the ability to fit into smaller spaces than other similar products. It combines the power of the V2607-DI-T engine, delivering 49 HP, with incredible precision thanks to the dual proportional joysticks and the perfectly fitted hydraulic flow. Its exceptional digging reach performance means no worksite is off-limits. Of course, because we know that safety and comfort should go hand-in-hand, the SWE60UF keeps you safe and provides comfort in all working conditions. Last but not least, in the Sunward tradition of always offering the best value for money, the SWE60UF offers many features and up to 3 years of warranty as standard, at the right price. Specification

SWE60UF
utline dimension (L×W×H)			5500×1980×2550 mm
Dimension parameter	A)Wheel tread		1965mm
	B)Total length of track		2495mm
	C)Ground clearance of platform		630mm
	D)Tail swing radius		1050mm
	E)Chassis width		1960mm
	F)Track width		400mm
	G)Ground clearance of chassis		318mm
	H)Track height		594mm
	I)Total length		5498mm
	J)Cab roof height		2550mm
	K)Width of cab		1830mm
Working range	a)Max.digging height		5615mm
	b)Max. unloading height		3950mm
	c)Max. digging depth		3710mm
	d)Max. vertical digging depth		3050mm
	e)Max. digging reach		6230mm
	f)Max. digging reach on theshutdown plane		6105mm
	g)Max. blade lifting height		455mm
	h)Max. blade digging depth		415mm
	r)Min. slewing radius		2640mm
	Dozer blade (L×W)		1960×340 mm
Machine weight	Rubber track		5.63t
	Steel track		5.7t
Bucket capacity			0.18m3
Bucket digging force			46.8kN
Arm digging force			31.1kN
Max. traction			48.9kN
Boom swing angle (Left / Right)			70°/50°
Traveling speed			4.07/2.43 km/h
Gradeability			35°
Ground specific pressure			31.5kPa
Swing speed			9.4rpm
Engine	Brand		Japanese Top Brand
	Model		V2607-DI-TE3B
	Type		4-cylinder, 4-stroke, water cooling
	Displacement		2.615L
	Power/Speed		36.5kW/2000rpm (gross)
			35kW/2000rpm (net)
Main pump	Type		2 variable plunger pumps
			1 gear pump
	Displacement		2×59+42 L/min
Pressure of main overflow valve			2×24.5+21 MPa
Capacity of fuel tank			70L
Capacity of hydraulic oil tank			70L
