5 Tons Customized Light Duty Portable Gantry Crane

5 Tons Customized Light Duty Portable Gantry Crane

US$300.00-5,000.00 1 Piece (MOQ)

Basic Info.

Maximum Lifting Height
10-15m
Operation Form
Ground Operation
Type
Common Gantry Crane
Main Girder Form
Single Girder
Transport Package
Standard
Specification
STANDARD
Trademark
HBY
Origin
Henan
Production Capacity
5000 Per Month

Product Description

Specialized Light Duty Crane Customization Manufacturer
Customized Workshop Overhead Crane
Overhead crane is a kind of bridge type crane whose crane span structure travels on the carrier track. Crane bridge travels longitudinally on the track laying on both sides of the elevated rail and the lifting trolley travels on the track laying on the bridge, which becomes a rectangular working range so that the room under the bridge can be made full use to lift articles and avoid blocking from ground equipment.
Overhead crane is widely used in the warehouse, workplace, port and open storage place indoors or outdoors. Overhead cranes can be classified into ordinary overhead crane, simple overhead girder crane and metallurgical special overhead crane. Ordinary overhead crane generally consists of lifting trolley, bridge traveling mechanism and bridge metal mechanism. Lifting mechanism is composed with lifting mechanism, trolley traveling mechanism and trolley frame.
Light Duty Workshop Crane We can Offer:
Item Details Item Details
Capacity 100kg-15000kg Span 1m-10m
Lifting Height 1m-10m Work Duty Light Duty
Power Supply 3P, 110V/220V/240V
380V/415V/440V, 50/60HZ
Lifting Speed 0.1-9m/min
Applications Indoor/Outdoor Hoist Type Chain Hoist or
Rope Hoist
3D Designing Drawing Supported Calculation Book Supported
Foundation Drawing Supported Steel Structure Design Supported
Wheel Type Nylon/Alloy Steel Traveling Method Manual/Electric
Delivery Time 2 Weeks Environment Temp -40-60

Client Samples:

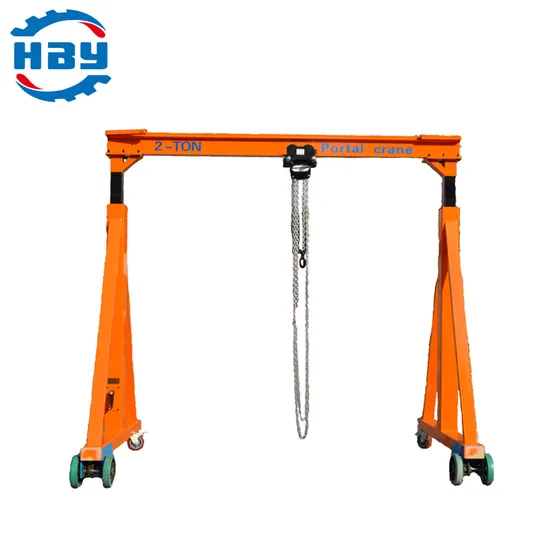

Customized Portable Gantry Crane:
Portable gantry cranes are used to lift and transport smaller items, usually less than 10 tons. They are widely used in the HVAC, machinery moving and fine art installation industries. Some portable gantry cranes are equipped with an enclosed track, while others use an I-beam, or other extruded shapes, for the running surface. Most workstation gantry cranes are intended to be stationary when loaded, and mobile when unloaded. Workstation Gantry Cranes can be outfitted with either a wire rope hoist or a lower capacity chain hoist.
Portable gantry cranes are perfect for applications where you need a portable and economical way to lift materials anywhere in your facility. The durable polyurethane casters to allow ease of movement around your facility. An overhead gantry crane provides a cost-effective lifting solution for areas of infrequent lifts than a more permanent jib crane or overhead bridge crane. These portable cranes provide a heavy duty end frame design with square tubing uprights, knee braces and channel base which provide a very stable base. These portable bridge cranes have a factor of 15% of crane capacity for the hoist and trolley weight, with an additional 25% of the capacity allowed for impact. All Gorbel portable bridge cranes are CE certified and have a capacity placard installed before shipping that display the CE logo.
Light Duty Gantry Crane We can Offer:
Item Details Item Details
Capacity 100kg-15000kg Span 1m-10m
Lifting Height 1m-10m(Telescopic) Work Duty Light Duty
Power Supply 3P, 110V/220V/240V
380V/415V/440V, 50/60HZ
Lifting Speed 0.1-9m/min
Applications Indoor/Outdoor Hoist Type Chain Hoist or
Rope Hoist
3D Designing Drawing Supported Calculation Book Supported
Foundation Drawing Supported Steel Structure Design Supported
Wheel Type Nylon/Alloy Steel Traveling Method Manual/Electric
Delivery Time 2 Weeks Environment Temp -40-60

Client Samples:
Customized Pillar Type Jib Crane:
A jib crane is a type of crane making use of a mounted arm to lift, move, reducing material. The arm, mounted either perpendicular to or at an acute angle upwards from a pillar or wall, may rotate along its central axis via a limited arc or possibly a full circle. A jib crane is usually used in industrial settings, like warehouses and docks, to load and unload shipping containers.
Light Duty Jib Crane We can Offer:
Item Details Item Details
Capacity 100kg-15000kg Arm Length 1m-6m
Lifting Height 1m-10m(Telescopic) Work Duty Light Duty
Power Supply 3P, 110V/220V/240V
380V/415V/440V, 50/60HZ
Lifting Speed 0.1-9m/min
Applications Indoor/Outdoor Hoist Type Chain Hoist or
Rope Hoist
3D Designing Drawing Supported Calculation Book Supported
Foundation Drawing Supported Steel Structure Design Supported
Wheel Type Nylon/Alloy Steel Traveling Method Manual/Electric
Delivery Time 2 Weeks Environment Temp -40-60

Client Samples:
Package & Transportation:
