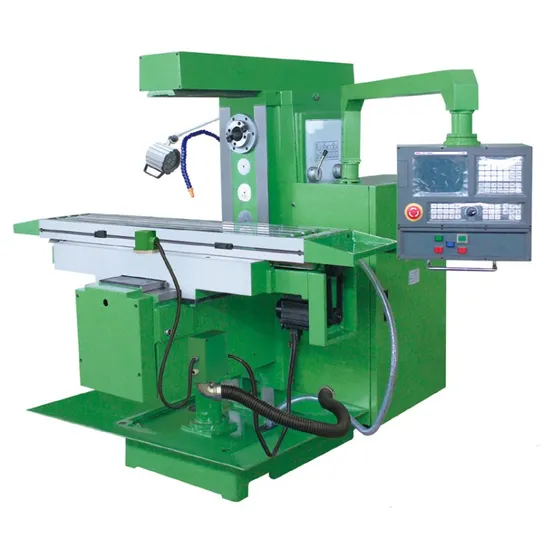

CNC Horizontal Knee-Type Milling Machine
| US$5,000.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XLK6036 XLK6030
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
GS
Condition
New
Transport Package
Woodencase
Origin
China
Production Capacity
1000pieces/Year
Product Description
Product DescriptionThe CNC milling machine is convenient and simple to operate. The operation panel of the CNC system is provided with operation keys such as spindle forward rotation, reverse rotation, stop and cooling system switch. The speed of the spindle is selected with three handles, and the feed of the table is stepless speed regulation.
Standard equipment: SIEMENS808D
Optional equiment: The fourth axis CNC rotary table
CNC dividing head)
CNC system: FANUC,Mitsubishi. GSK980MDC
Product Parameters
| Specification | Unit | XLK6036C | XLK6036CL | XLK6030 |
| Spindle hole taper | - | 7:24 ISO50 | 7:24 IS040 | |
| Distance betv/een spindle and table surface | mm | 10-460 | 75-475 | |
| Distance from spindle axis to arm | mm | 175 | 155 | |
| Spindle speed range | r/min | 12steps 60-1800 | 12steps 35-150 | |
| Arm travel | mm | 500 | - | |
| Table size | mm | 1325x360 | 1600x360 | 1370x300 |
| Table travel (X/Y/Z) | mm | 1100/320/450 | 1300/320/450 | 820/300/400 |
| Table rapid feed speed | mm/min | 4000/4000/3000 | 4000/4000/3000 | |
| T-slot (No. / width / pitch) | mm | 3/18/70 | 3/14/80 | |
| Main motor power | kw | 5.5 | 3 | |
| Torque of X / Y / Z axis AC servo motor | N.m | 10/10/18 | 10/10/15 | |
| Overall size(LxWxH) | mm | 2400x2000x1870 | 2800x2000x1870 | 1850x1760x1800 |
| Net weight | kg | 2465 | 2510 | 1850 |
The CNC milling machine is convenient and simple to operate. The operation panel of the CNC system is provided with operation keys such as spindle forward rotation, reverse rotation, stop and cooling system switch. The speed of the spindle is selected with three handles, and the feed of the table is stepless speed regulation.
Standard equipment: SIEMENS808D
Optional equiment: The fourth axis CNC rotary table
CNC dividing head)
CNC system: FANUC,Mitsubishi. GSK980MDC
