Br800 CNC Lathe Milling Machine Price Multifunction CNC Milling Machine Machining Center Horizontal Br800

Product Description

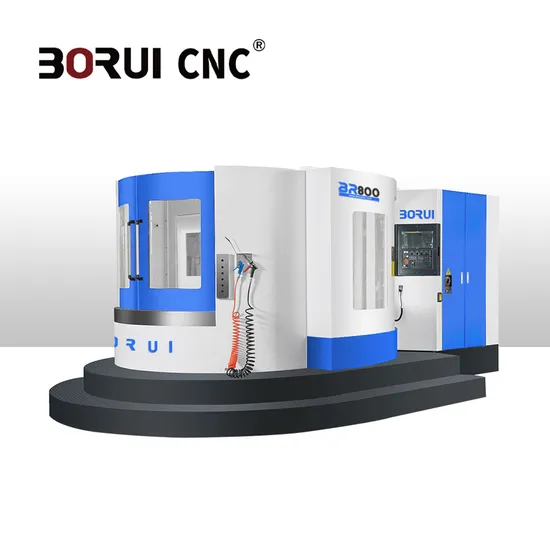

High Precision 4 Axis Cnc Milling Machine Hmc Horizontal Cnc Machine Center BR800 Product Description
Horizontal machining center spindle speed is high, the rigidity is strong, the torque is big. The main shaft is equipped with cooling system, the automatic rotation of the double working table, reducing the auxiliary time, improve efficiency. This series of machine tool performance is perfect, the precision is stable, it is suitable for processing various types of box parts and two dimensional, three-dimensional surface, it is mechanical, automobile, communication, textile machinery, printing machinery, agricultural machinery and other industries processing box type parts of key equipment.processing equipment.
Product Parameters

Description	Unit	BR800
Table size	mm	800*800
Table loading	kg	2000
maximum dimensions of workpiece	mm	1400×1000
Distance from countertop to bottom	mm	1130
X-axis travel	mm	1250
Y-axis travel	mm	900
Z-axis travel	mm	1050
Worktable center to spindle end face	mm	200~1250
Table surface to spindle center	mm	40~940
Spindle speed	rpm	50~4000(Belt 1:1.2 deceleration)
spindle motor	kw	15/18.5KW
Spindle speed change		stepless speed
taper hole of spindle		BT50 (optional BT40)
Fast feed speed	m/min	X,Z:24,Y:18
Feed cutting speed	m/min	10
positional accuracy	mm	0.015
repeated positioning accuracy	mm	0.008
B axis positioning accuracy		±6
B axis repeated positioning accuracy		±2
lead screw		X/Y/Z:φ5012
guide rail		X/Z:45 Y:55 rollers
Machine size	mm	3300×4000×3200
weight	t	9

Optional Accessories:
·SIEMENS 808D BASIC/828D CNC Controller
·16T DISC type tool magazine
·WITHOUT tool magazine(CNC Milling)
·BOX guideway or LINEAR guideway
·4th axes(NC Dividing Head)
·CE protection
CNC milling machine features:
1.HMC Series cnc horizontal machining center is the ideal machining center for producing box-type and irregular work pieces for automobile, shipbuilding, engine and general manufacturing industries.
2. The machine is a high-performance, high-reliability and high-precision product characterized by compact configuration and rapid response rates.
3. The spindle design makes it particularly suitable for heavy power cutting while the excellent ball screw and spindle cooling system provide superb capability for flexible manufacturing.
4. High-speed High-power Spindle;
5. Compact Configuration and Unrivaled rigidity;
6. High-speed ATC;
7. CE Standard and CE Certificate;
