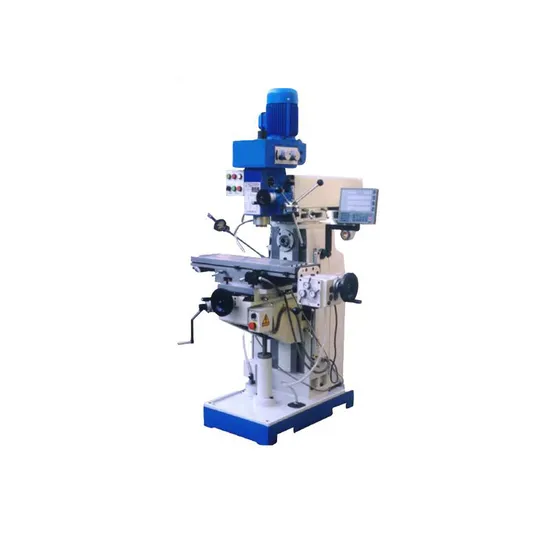

Senmo Universal Milling Machine Xz7550cw
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
XZ7550CW
Type
Worktable Milling Machine
Structure
Rocker
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Max. Face Milling Width
100mm
Max. End Milling Width
25mm
Max. Tapping Capacity
M16
Table Size
800X240mm
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84596990
Product Description
| Universal Milling Machine ZX7550CW |
| Specifications | ZX7550CW |
| Max. drilling dia. | Ø50mm |
| Max. face milling width | 100mm |
| Max. end milling width | 25mm |
| Max. tapping capacity | M16 |
| Table size | 800x240mm |
| X-axis travel | 385mm |
| Y-axis travel | 200mm |
| Z-axis travel | 340mm |
| Distance from spindle nose to table | 60-390mm |
| Distance from spindle to column | 190-740mm |
| Spindle taper | R8 or ISO40 |
| Spindle stroke | 120mm |
| T-slot size | 14mm |
| Spindle speed vertical | 115-1750rpm/8steps |
| Spindle speed horizontal | 60-1350rpm/9steps |
| Head tilt left and right | ±45º |
| Vertical spindle motor | 0.85/1.1KW |
| Horizontal spindle motor | 1.5KW |
| N.W/G.W | 850/970 kg |
| Standard Accessories | Optional Accessories |
| Machine Work lamp | Digital readout system |
| Coolant system | Spindle protect guard |
| CE electrical cabinet | Pendent control station |
| Drill chuck | Dividing head device |
| Drawbar | Rotary table |
| Chip tray | Clamping kit |
| Manual lubrication oil pump | Vice |
| X axis geared power feed | Y axis electronic power feed |
Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
