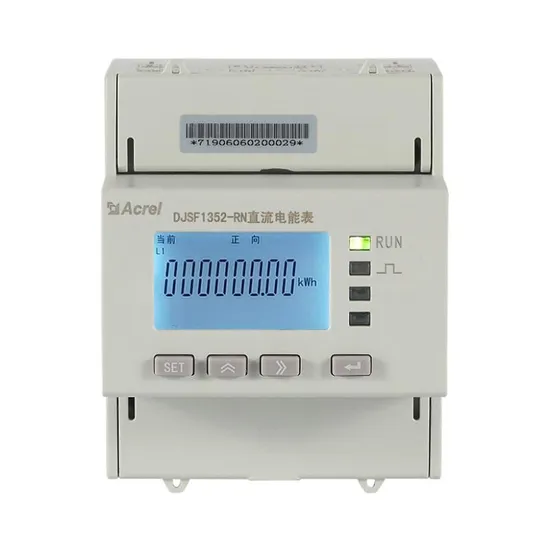

DJSF1352-RN rail-mounted DC power meter
DJSF1352-RN rail-mounted DC power meter with double DC input channels, designed for telecommunications base stations, DC charging piles, solar photovoltaic and other applications, this series of meters can measure the voltage, current, power and forward and reverse energy and so on in the DC system.The actual use of the site, you can measure the total power, but also measure the energy within a specified period of time. The test results can be used for local display, but also with industrial control equipment, computers to form a measurement and control system. The meter can have infrared communication interface and RS-485 communication interface, and supports Modbus-RTU protocol and DLT645-97 (07) protocol at the same time.The meter can have relay alarm output and digital input function;You can set the ratio, alarm, and communication through the meter panel keys according to different requirements.The meter can have event recording of switch (Modbus protocol), programming and event setting records (645 protocol), instantaneous and timing freeze function of data (645 protocol), maximum and minimum value recording function of voltage and current power. Product Description
Dimension
Technical parameters

Technical parameters		Index
Input	Voltage input range	DC 0-1000V, See the physical wiring diagram
	Current input	Shunt:0-75mV; Hall sensor:0-20mA,4-20mA,0-5V,0-10V and so on.
	Overload	1.2 times rated (continuous); 2 times rated/1 second;
	Power consumption	Voltage: ≤0.2VA, current ≤0.1VA
Accuracy class		Class 1
Function	Display	8-bit segment LCD screen (LCD)
	Communication Interface	RS485(two channels of RS485 can be chosed)
	Communication protocol	Modbus-RTU,DL/T 645-2007
	Switch output	2 Relay outputs, 2A/30VDC or 2A/250VAC
	Switch input	2 dry contact inputs
	Pulse output	A second pulse output, an energy pulse output
		See the SYS->PLUS display in the meter menu settings. For example: The meter displays 100, which is 100imp/kWH
Power Supply	Voltage range	AC/DC 85-265V or DC24V(±10%) or DC48V(±10%)
	Power consumption	≤ 3W
Power frequency withstand voltage	Power supply // Voltage input // Current input // Relay output and switch input // Communication interface / / Pulse output 3kV/1min Power supply // Relay output // Voltage input // Current input 3kV/1min Pulse output // Communication interface // Switch input 2kV/1min
Impulse withstand voltage		±6KV
Average barrier-free working hours		≥50000h
Environment	Temperature	Normal operating temperature: -25 °C ~ +65 °C; Limit working temperature: -40 °C ~ +70 °C; Storage temperature: -40ºC~+80ºC
	Humidity	≤93%RH, no condensation, no corrosive gas
	Altitude	≤2500m
