US$28,000.00-30,000.00
|
1 Set
(MOQ)
|
Basic Info.
Automatic Grade
Automatic
Overall Dimension:4200*750*1700mm
Punching Frequency:20-35time/Min
Transport Package
Wooden Packaging
Production Capacity
50 Sets/Month
Packaging & Delivery
Package Size
580.00cm * 100.00cm * 178.00cm
Package Gross Weight
2100.000kg
Product Description
Feature:
it's a new type one that combines hydraulic and servo working of main forming machine and also brings to more improvement and innovation.With easy operation, calm running, conveninent maintenance and stable function.It can provide PVS,PS,PET etc.All kinds of covers.
Technical Parameter:
Punching Frequency | 20-35time/min |
Max.Forming Depth | 50mm |
Max.Forming Area | 260*450mm² |
Air-compressor | Less than 0.2m³/min |
Pressure | 0.4-0.7MPa |
Power | 20Kw |
Overall Dimension | 4200*850*1700mm |
Weight | 2000KG |

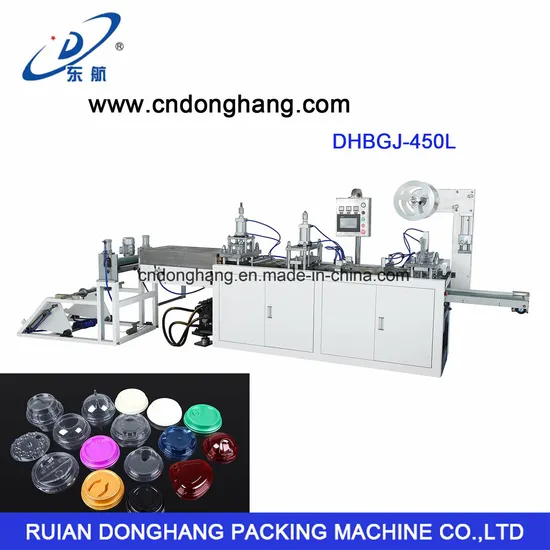

Machine Image:
Sample reference:
Packing and shipping:
