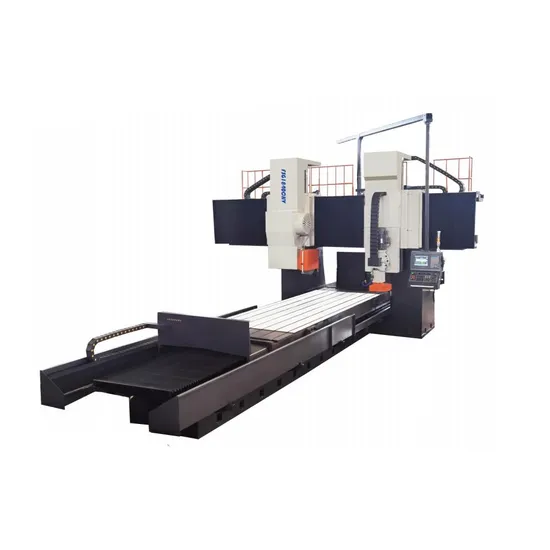

High Precision, Gantry Surface/Guideway Grinder

Product Description

Product Parameters
Specifications

ITEM /MODEL		FSG-1800 HV		FSG-2000 HV	FSG-2500 HV	FSG-3000 HV
• Working area
	Table width	mm	1400	1600	2000	2500
	Table length	mm	3000/4000	3000/4000	4000/5000/6000/6500	4500/6000/8000
	Gantry width	mm	1800	2200	2600	3200
	Max. machining width	mm	1700	2000	2400	3000
	Max. machinging length	mm	3000-4000	3000-4000	4000-6500	4500-8000
	Max. machinging height	mm	600/800	600/800	800/1000	800/1000
• Horizontal spindle
	Intermittent feed rate	mm/t	1~50	1~50	1-50/2-100	2-100
	Feed of MPG	mm	0.005	0.005	0.005	0.005
	Spindle motor power	kw	18.5/22	18.5/22	18.5/22/30	30
	Wheel size	mm/div	500*100*203	500*100*203	500*100*203/600*150*305	600*150*305
	Spindle speed	r/min	1323	1323	1323/980	980
• Vertical spindle
	Swivel of spindle		±100°	±100°	±100°	±100°
	Min. indexing		5°	5°	5°	5°
	Feed of MPG (cross feed)	mm/div	0.005	0.005	0.005	0.005
	Spindle motor power	kw	7.5/11	7.5/11	7.5/11	7.5/11
	Wheel size	mm	400*50*127	400*50*127	400*50*127	400*50*127
	Spindle speed	r/min	800-3000	800-3000	800-3000	800-3000
