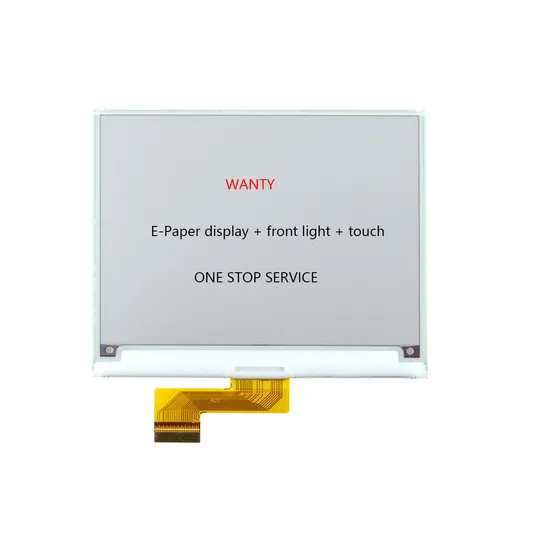

Eink Epaper EPD 4.2 Inch 400x300 SPI Low Power Consumption Front Light Capacitive Touch E-paper Display Module For Electronic Shelf Label Price Tag Ereader
One Stop Customization Solution Service: Epaper Display + Front Light + Capacitive Touch Panel
1. Application Filed Common Application
2. Overview TYKEGM042001T09 is a reflective electrophoretic display module on an active matrix TFT substrate, The diagonal length of the active area is 4.2"and contains 400 x300 pixels. The panel is capable of displaying 1-bit black, white and red images depending on the associated lookup table used.
The circuitry on the panel includes an integrated gate and source driver, timing controller, oscillator, DC-DC boost circuit, and memory to store the frame buffer and lookup tables, and additional circuitry to control VCOM and border settings.
3. Features Ultra low power consumption Ultra wide viewing angle On chip display RAM Interface: 4-Wire SPI or 3-Wire SPI Wide range of operating temperature: 0ºC to 40ºC Wide range of Storage temperature: -25ºC to 40ºC High reflectance and contrast TFT electrophoretic. I2C Signal Master Interface to read external temperature sensor.
4. Mechanical Data
NO. | ITEM | SPECIFICATION | UNIT |
1 | Dot Matrix | 400(H)×300(V) | - |
2 | Screen Size | 4.2 | Inch |
3 | DPI | 119 | - |
4 | ActiveArea | 84.80 (H)×63.60 (V) | mm |
5 | Pixel Pitch | 0.212×0.212 | mm |
6 | TFT Area | 91.0 (H)×77.0 (V) | mm |
7 | Outline Dimension | 91.0 (H)×95.5 (V) ×1.001(T) | mm |
8 | Pixel Configuration | Rectangle | - |
9 | Driver IC | SEE330 | - |
10 | Module Weight | TBD±10% | gram |
