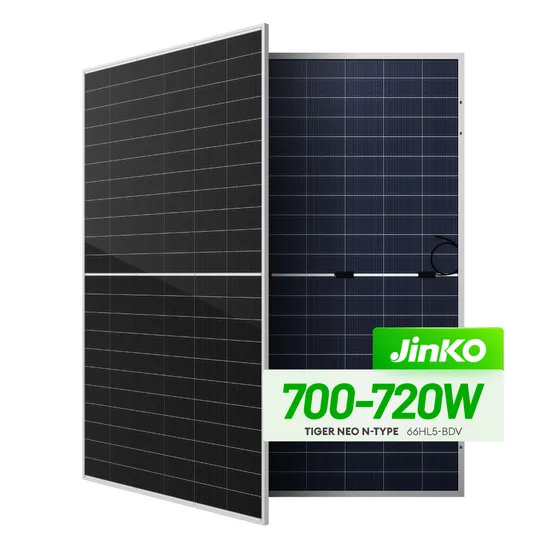

Jinko Home Use Bifacial Mono Solar Panel 700W 710W 720W N Type EU Warehouse Solar Module

Product Description

Jinko SolarSpecification

Maximum Power - Pmax [Wp]	700	705	710	715	720
Maximum Power Voltage - Vmp [V]	40.42	40.53	40.65	40.77	40.89
Maximum Power Current - Imp [A]	17.32	17.40	17.47	17.54	17.61
Open-circuit Voltage - Voc [V]	48.40	48.56	48.73	48.88	49.04
Short-circuit Current - Isc [A]	18.40	18.46	18.53	18.60	18.67
Module Efficiency STC [%]	22.54	22.70	22.86	23.02	23.18
Power Tolerance	0~ +3 %
Temperature Coefficients of Pmax	-0.29 %/ºC
Temperature Coefficients of Voc	-0.25 %/ºC
Temperature Coefficients of Isc	0.045 %/ºC
Operating Temperature [ºC]	-40 °C ~ +85 °C
Maximum System Voltage	1500 VDC (IEC)
Maximum Series Fuse Rating	35 A
Nominal Operating CellTemperature - NOCT	45±2 °C
Refer. Bifacial Factor	80±5 %

Tiger Neo N-type & Tiger Pro Series
615~635W BifacialTiger Neo N-Type 78HL4-BDV
Cells Layout: 156 Half Cells(2x78)Dimensions: 2465x1134x30mmWeight: 34kgModules per box: 36pcsModules per 40' container: 576pcs615~635W Mono-FacialTiger Neo N-type 78HL4-(V)Cells Layout: 156 Half Cells(2x78)Dimensions: 2465x1134x30mmWeight: 29.5kgModules per box: 36pcsModules per 40' container: 576pcs600~625W BifacialTiger Neo N-type 66HL4M-BDVCells Layout: 132 Half Cells(2x66)Dimensions: 2382x1134x30mmWeight: 32.4kgModules per box: 36pcsModules per 40' container: 720pcs570~590W BifacialTiger Neo N-type 66HL4M-BDVCells Layout: 132 Half Cells(2x66)Dimensions: 2382x1134x30mmWeight: 32.4kgModules per box: 36pcsModules per 40' container: 720pcs570~590W Mono-FacialTiger Neo N type 72HL4-BDVCells Layout: 144 Half CellsDimensions: 2278x1134x35mmWeight: 27kgModules per box: 31pcsModules per 40' container: 620pcs535~555W BifacialTiger Pro 72HC-BDVP BifacialCells Layout: 144 Half CellsDimensions: 2278x1134x30mmWeight: 31kgModules per box: 36pcsModules per 40' container: 720pcs550~570W Mono-FacialTiger Pro 72HCCells Layout: 144 Half CellsDimensions: 2278x1134x35mmWeight: 27kgModules per box: 31pcsModules per 40' container: 620pcs470~490W Mono-FacialTiger Neo N-type 60HL4-(V)Cells Layout: 120 Half Cells(6x20)Dimensions: 1906x1134x30mmWeight: 22.5kgModules per box: 36pcsModules per 40' container: 864pcs425~455W Mono-FacialTiger Neo N-type 54HL4R-(V)Cells Layout: 108 Half Cells(6x18)Dimensions: 1762x1134x30mmWeight: 21kgModules per box: 36pcsModules per 40' container: 936pcs420~440W All BlackTiger Neo N-type 54HL4R-BCells Layout: 108 Half Cells(6x18)Dimensions: 1762x1134x30mmWeight: 21kgModules per box: 36pcsModules per 40' container: 936pcsPictures & Package
Tier 1 Solar Module
