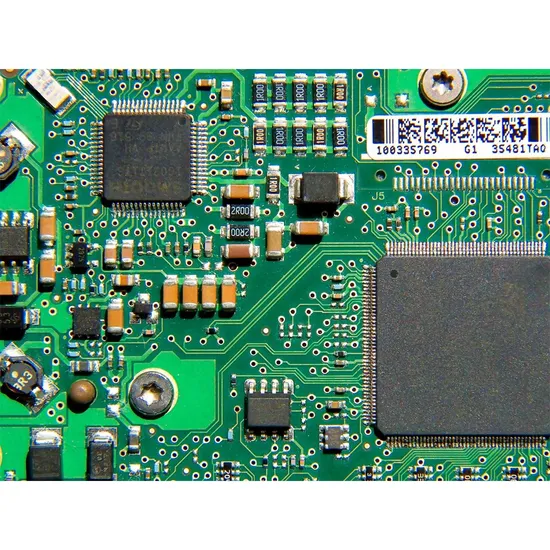

Air Conditioner Inverter Electric Printed Circuit Board Solar WiFi Bluetooth Module LED Flexible Electronic PCB Manufacturer

Product Description

Product Parameters

PCB Assembly Capability
Item	Capability
Advantages	----Professional Surface-mounting and Through-hole soldering technology
	----Various sizes like 1206,0805,0603 components SMT technology
	----ICT(In Circuit Test),FCT(Functional Circuit Test)
	----PCB Assembly With UL,CE,FCC,Rohs Approval
	----Nitrogen gas reflow soldering technology for SMT.
	----High Standard SMT&Solder Assembly Line
	----High density interconnected board placement technology capacity.
Components	Passive Down to 0201 size
	BGA and VFBGA
	Leadless Chip Carriers/CSP
	Double-sided SMT Assembly
	Fine Pitch to 0.8mils
	BGA Repair and Reball
	Part Removal and Replacement
Quantity	Prototype & Low Volume PCB Assembly,from 1 Board to 250, or up to 1000 and customized
Type of Assembly	SMT, Thru-hole
Solder Type	Water Soluble Solder Paste, Leaded and Lead-Free
Bare Board Size	Smallest:0.25*0.25 inches
	Largest:20*20 inches
File Formate	Gerber files, Pick-N-Place file, Bill of Materials
Types of Service	Turn-key,partial turn-key or consignment
Component packaging	Cut Tape,Tube,Reels,Loose Parts
Turn Time	Same day service to 15 days service
Testing	Flying Probe Test,X-ray Inspection AOI Test
PCB assembly process	Drilling----Exposure-----Plating-----Etaching & Stripping---Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling---- ICT-----Function Testing-----Temperature & Humidity Testing

Related Products
Company Profile
FAQ Q: What service do you have?
A: We provide turnkey solution including RD, PCB fabrication, SMT, testing and other value-added service.
Q: What are the main products of your PCB/PCBA services?
A: Our PCB / PCBA services are mainly for the industries including Medical, Automotive, Energy, Metering / Measurements, Consumer Electronics.

Q: What files required to get quotation from you?
A: For PCB quotation, please provide the Gerber data / files and indication of related technical requirements as well as any special requirement if you have. For PCBA quotation, please provide Gerber data / files and also BOM (bill of materials), and if you need us to do function test, please also provide the test instruction/procedure.
Q: How long does it take for PCB quote?
A: Normally 12 hours to 48 hours as soon as receive internal engineer evaluate confirmation.
Q: Do you have any minimum order quantity (MOQ) requirement?
A; No, we do not have MOQ requirement, we can support your projects starting from prototypes to mass productions.
