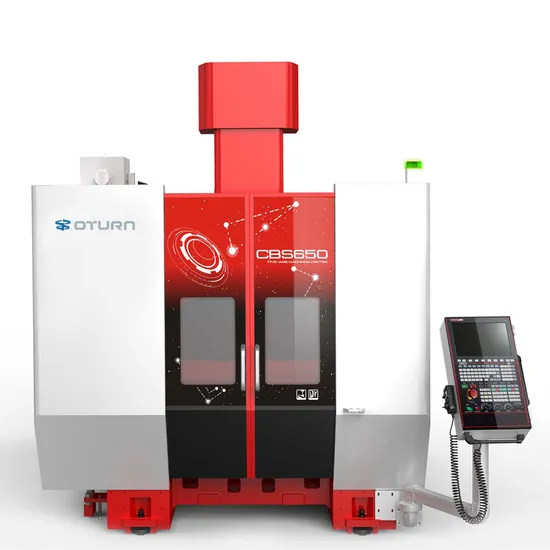

High Rigidity Gantry Structure 5 Axis Vertical CNC Machining Center CBS650

Product Description

Product Description
High-speed precision five-axis bridge-type five-axis machining center CBS650 developed has the characteristics of high rigidity, high precision and high efficiency machining. CBS series machine tools adopt bridge structure layout, XYZ axis movement is not affected by AC axis, and can maintain high-precision machining for a long time; X/Y/Z/A/C axes are fully closed-loop controlled to ensure high-precision machining; the whole machine adopts finite element analysis The individual components are designed to provide the best overall stable performance.
The three-axis rapid displacement is 48 M/min, the T-T tool change time is only 5.5S, the tool magazine is fully loaded for 24 hours, and there is no alarm for tool change sex. It is suitable for two or three-dimensional concave-convex models with complex shapes that require 5-axis linkage for one-time processing. It is more suitable for small and medium-sized batches of multi-variety processing and production, and can also enter automatic lines for mass production.
Adopting the latest C80 plus system, 15-inch large LCD screen, tool path dynamic graphic display, intelligent alarm display, self-diagnosis and other functions make the use and maintenance of the machine tool more convenient and faster; the high-speed bus communication method greatly improves the data of the CNC system Processing power and control performance, the program storage capacity is increased to 4G, and the pre-reading capability is increased to 3000 lines/second, making it easy to read data quickly and accurately. Efficient transfer and online processing of large-volume programs.
Product Parameters

Item		Unit	CBS-650
Travel	X/Y/Z axis travel	mm	650×800×560
	Distance from spindle end to table surface	mm	110-670
	Maximum distance from spindle center to table surface at 90° of A-axis	mm	525
	Maximum machining range	mm	φ650*560
C-axis turntable	Diameter of disc surface	mm	Φ650
	Turntable T-slot/guide key width	mm	14H7/25H7
	Allowable load	kg	800
Three-axis feed	X/Y/Z-axis rapid movement	m/min	48/48/48
	Cutting feed speed	mm/min	1-24000
spindle	Spindle specifications (mounting diameter/transmission method)	mm	170/built in
	Spindle taper bore	mm	A63
	Maximum spindle speed	r/min	20000
	Spindle motor power (continuous/S3 15%)	kW	30/34
	Spindle motor torque (continuous/S3 15%)	N.m	47.7/57.3
Tool magazine	Tool magazine capacity		30T
	Tool exchange time (T-T)	s	5.5
	Max. tool diameter	mm	80/120
	Max. tool length	Mm	300
	Max. tool weight	kg	8
Guide Rail	X-axis guideway (size/number of slides)	mm	452
	Y-axis guideway (size/number of slides)		45/2
	Z-axis guideway (size/number of slides)		35/2
Three Axes	X linear motor thrust (continuous/max)	N	3250/8250
	Y linear motor thrust (continuous/max)	N	3250/8250
	Z-axis screw	N	2R40*20(Double thread)
Five axis	A-axis rated/max speed	rpm	40/80
	A axis rated/max cutting torque	Nm	3500/7000
	C-axis rated/max speed	rpm	50/90
	C axis rated/max cutting torque	Nm	964/1690
	A-axis positioning/repetition accuracy	arc-sec	10/6
	C-axis positioning/repetition accuracy	arc-sec	8/4
Three axis accuracy	Positioning accuracy	mm	0.005/300
	Repeat positioning accuracy	mm	0.003/300
Lubrication System	Lubrication unit capacity	L	0.7
	Lubrication type		Grease lubrication
Cutting fluid	Water tank capacity	L	560
	Cutting pump parameters		0.32Mpa×16L/min
others	Air demand	kg/c	≥6
	Air source flow rate	mm3/min	≥0.5
	Power supply capacity	KVA	55
	Machine weight (combined)	t	15
	Dimension (L×W×H)	mm	2800×7050×3500
