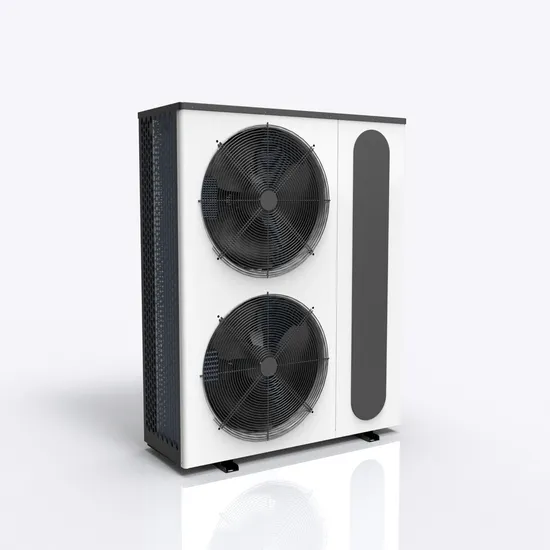

WiFi Control Rg-Ready Bafa Keymark Air Source Heating Cooling Heat Pump 26kw for Houses Hotel

Product Description

Product Description R32 inverter monoblok A++ air source heat pump for residential heating ,cooling and sanitary hot water.

Product Features 1). R32 refrigerant,eco-friendly.2). Energy class: A++.
3). Stable operation at -25ºC
4). Power Detection Function5). Linkage Control with PV Function
6). Outlet water temperature up to 60ºC.
*R32 EVI inverter compressor stable operation at -25ºC,for space central heating and domestic hot water use.
*Smart life:WiFi/APP connect/5-inch TFT true color screen,RS485 smart grid.
*Dual zone temperature experience.
*Usage scenarios,meet the needs of daily life.
Product Parameters

Model			BLN-009TA1	BLN-012TA1	BLN-015TA1	BLN-018TA1
Power supply			220-240V / 1/ 50Hz
Heating¹ (A7/6ºC,W30/35ºC)	Heating Capacity	kW	3.4~10.2	4.20~12.20	5.30~16.50	6.20-20.50
	Power Input	kW	0.7~3.2	0.86~2.88	1.15-4.15	1.36-5.28
	SCOP		4.29	4.23~5.39	3.97~5.43	3.88~5.21
Heating² (A7/6ºC,50/55ºC)	Heating Capacity	kW	3.6~10.3	3.85~11.20	4.90~15.10	6.30-19.90
	Power Input	kW	0.9~4.3	1.13~3.75	1.65~5.25	1.65-6.82
	SCOP		3.36	2.99~3.46	2.87~3.38	2.91~3.34
Cooling (A35/24ºC,W12/7ºC)	Cooling Capacity	kW	2.1~8.2	2.60~10.30	4.50-13.50	5.50-17.50
	Power Input	kW	1.4~4.5	0.91~3.65	1.45-4.85	1.65-6.25
	EER		2.82	4.03~16.19	6.43~21.52	7.40-28.02
ERP level(out water temp. at 35ºC/55ºC)		/	A++	A++	A++	A++
Refrigerant Type/Charge		.../kg	R32/1.5	R32/1.6	R32/3.2	R32/3.2
Noise level		Heating	45	45	48	48
		Cooling	46	46	49	49
Water Piping Connections		mm	DN25 Dale			DN32 Dale
Rated Water Flow		m³/h	1.55	2.05	2.55	3.10
Operating temperature range		Cooling	16~48
		Heating	-25~48
		DHW	-25~`48
Product Dimensions ( L×W×H )		mm	1005*375*800	1005*375*800	1025*380*1320	1077*377*1460
Packed Dimensions()		mm	1080*455*960	1080*455*960	1076*440*1460	1150*450*1620
Product Weight		kg	70	75	124	147
Packed Weight		kg	80	85	140	165

Model			BLN-012TA3	BLN-015TA3	BLN-026TA3	BLN-032TA3
Power supply			380-415V / 3 / 50Hz
Heating¹ (A7/6ºC,W30/35ºC)	Heating Capacity	kW	4.6~12.8	5.2~16.8	11.8~28.6	14.5~36.3
	Power Input	kW	0.8~3.9	1.0~5.1	2.9~6.2	3.8~7.6
	SCOP		4.31	4.26	4.36	4.20
Heating² (A7/6ºC,50/55ºC)	Heating Capacity	kW	4.7~12.9	5.3~16.8	11.8~28.8	14.7~36.6
	Power Input	kW	1.4~5.1	1.3~6.7	3.8~8.1	4.9~9.9
	SCOP		3.30	3.32	3.69	3.52
Cooling (A35/24ºC,W12/7ºC)	Cooling Capacity	kW	2.6~9.1	3.6~11.5	5.2~19.5	6.2~24.5
	Power Input	kW	1.9~4.7	2.0~7.8	4.8~9.3	5.1~11.4
	EER		2.77	2.86	2.83	2.96
ERP level(out water temp. at 35ºC/55ºC)		/	A++	A++	A++	A++
Refrigerant Type/Charge		.../kg	R32/1.6	R32/3.2	R32/5.0	R32/6.8
Noise level		Heating	45	48	50	50
		Cooling	46	49	51	51
Water Piping Connections		mm	DN25 Dale		DN32 Dale
Rated Water Flow		m³/h	1.55	2.55	4.50	5.50
Operating temperature range		Cooling	16~48
		Heating	-25~48
		DHW	-25~`48
Product Dimensions ( L×W×H )		mm	1005*375*800	1025*380*1320	1127*427*1560	1127*427*1560
Packed Dimensions()		mm	1080*455*960	1076*440*1460	1150*500*1720	1150*500*1720
Product Weight		kg	75	124	160	200
Packed Weight		kg	85	140	178	218

Company Profile
Sacon HVAC,a number of Solareast,which is a prominent player in the energy sector, operates five state-of-the-art production bases across China.Among them, located in Shunde, Guangdong, specializes in the production of air source heat pumps.
Spanning over 100,000 square meters, we have invested USD 2 million in the construction of advanced testing laboratories. These cutting-edge facilities enable us to rigorously test machines up to 300kW, even in the harshest cold climates, with temperatures as low as -30°C.
Moreover, Solareast Heat Pump Ltd. has received prestigious certifications such as ISO9001, ISO14001,ISO18001, and our products have gained approval from
BAFA,CE, Rohs, MCS, KEYMARK, CB, SAA, ErP, among others.
With more than a decade of experience in air source heat pump technology, Solareast Heat Pump Ltd. stands at the forefront of providing sustainable and highly efficient thermal energy solutions.
