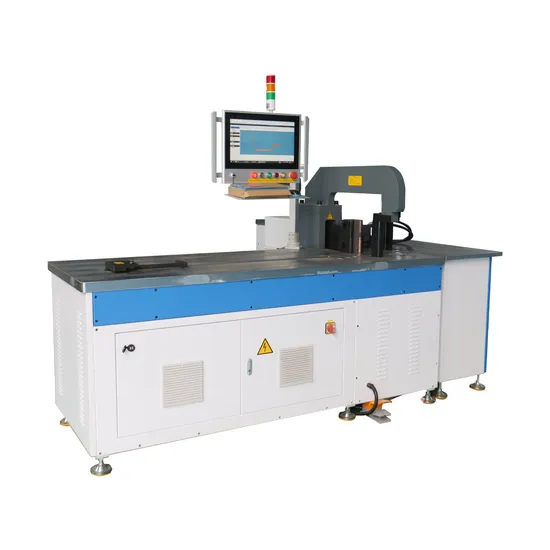

Hydraulic CNC Busbar Bender Machine with Advanced Bending Technology
| US$10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
EMAC-BB
Condition
New
Certification
CE
Automation
Automatic
Suitable for
Copper, Aluminum
Type
Beading Machine
Transport Package
Seaworthy Package
Specification
2600x1500mm
Trademark
BEIENE
Origin
Shandong, China
Production Capacity
1000/Year
Packaging & Delivery
Package Size
260.00cm * 150.00cm * 180.00cm
Package Gross Weight
2600.000kg
Product Description
Our Advantages
1. Whole Assembled Shipment . No need On-Site Installation and commission !
Customer can start to operate it in very easy way !
2. Windows All in One Touch Screen Computer
3. Upgraded 3D Busbar Design Software Read Solid works and Auto CAD Drawing
file directly
4. Internet and Ready for your Industry 4.0
Working Flow
Product Parameters
| Item | Unit | Parameter |
| Nominal Force | KN | 400 |
| Bender Accuracy | Degree | ±0.2° |
| Max bending Stroke | mm | 250 |
| Stroke of side striker | mm | 1200 |
| Max Moting Speed of Side striker(X Axis) | m/min | 50 |
| Bending Head(Y Axis) | m/min | 0-5(servo Control) |
| Min inner Width of U-shape bend | mm | 40(Note:Please consult us for smaller dimensions) |
| Max bending angle | degree | 90 |
| Level bending (W*H) | mm | 200X15 |
| Vertical Bend(W*H) | mm | 125×15 |
| Total power | kw | 7.2 |
| Main machine dimension:L*W | MM | 2600X1500 |
| TOTAL Weight | kg | 2600 |
| Control Section | ||
| Serial No. | Name | Brand Name |
| 1 | Progarmmable Control | SIEMENS |
| 2 | Sensor | SIEMENS |
| 3 | Control Button | SIEMENS |
| 4 | All-in-one Industrial Computer | BORO |
| 5 | AC Contactors | ABB |
| 6 | Circuit Breaker | ABB |
| 7 | Servo Motors | LUST |
| 8 | Servo Drivers | LUST |
| 9 | Control software and Three-dimensional computer-aided design | Update BRCAD |
| Transmission System | ||
| Serial No. | Name | Brand Name |
| 1 | Precision Straight rail | Taiwan HIWIN |
| 2 | Precision Ball Screw | Taiwan HIWIN |
| 3 | Bearing | Japan NSK |
3D Drawing Software (Bus bar Design to Finished Piece At one Time)
Auto Compensation System
Fast but Energy Saving!
High Efficiency!
Thumb up by Customer
