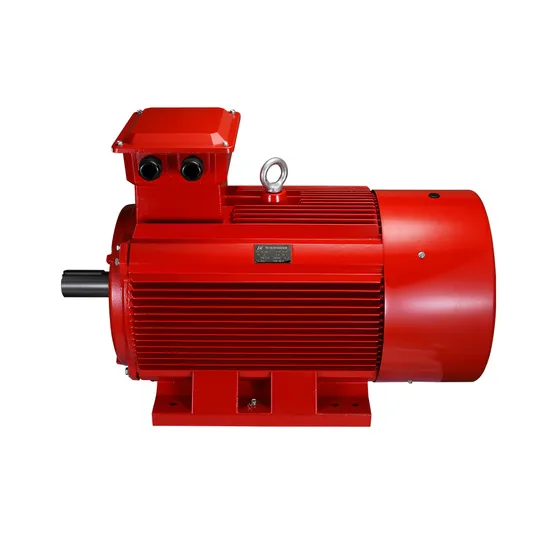

110kw 75kw 55kw 45kw Ie2 Y2 Series Three Phase Electric Motor (Y2-315S)

Product Description

Workshop
Product Description
Basic Info
Model NO.: Y2-132S1-2(5.5KW)B3
Speed: Variable Speed
Function: Driving
Number of Poles: 2
Brand: Yachan
Trademark: YACHAN
Origin: Taizhou City, Zhejiang Province
Application: Industrial
Number of Stator: Three-Phase
Casing Protection: Protection Type
Certification: ISO9001, CCC
Color: Silver, Blue and So on
Specification: CE, SGS
HS Code: 8501520000
Product Description
Introduction:
Y2 series three-phase asynchronous motor is Y series motor the upgrading of product, is the totally enclosed, fan-cooled induction motor for general purpose .
It was the newest product in the 90S' ,its overall level has reached the same products abroad at the beginning of 90S'level. The product apply to economic lake-off fields, such as machine tools, water pump, fan, compressor, also can be applied to transportation, stirring, printing, agricultural machinery, food and other kinds of excluding inflammable, explosive or corrosive gas.
Y2 series three phase asynchronous motor installation size and power grade in conformity with relevant standards of IEC and Germany DIN42673 standard line and Y series motor, its shell protection grade for IP54, cooling method for IC41l, operate continuously (S1). Using F insulation class and grade B assessment according to temperature (except for 315 L2-2, 4355 all specifications F grade the assessment, and ask the assessment load noise index.
Y2 series three-phase asynchronous motor the rated voltage is 380 V. rated frequency is 50 Hz. 3 KW the following connection is Y , other power are delta connection . Motor running the place at no more than 1000 m; Environment air temperature changes with seasons, but no more than 40 °C; Minimum environment air temperature is-15 °C; The wet month average high relative humidity is 90%; At the same time, this month is not higher than the lowest average temperature 25 °C.

Motor Features:
1. Frame size:H56-355;
2. Power:0.12-315Kw;
3. Voltage: 380V;
4. Rated Frequency: 50 Hz / 60 Hz;
5. Poles: 2 / 4 / 6 / 8 / 10
6. Speed: 590 -2980 r/min
7. Ambient Temperature: -15°C-40°C
8. Model of CONEECTION: Y-Connection for 3 KW motor or less while Delta-Connection for 4 KW motor or more;
9. Mounting: B3; B5; B35; B14; B34;
10. Current: 1.5-465 A (AC);
11. Duty: continuous (S1);
12. Insulation Class: B;
13. Protection Class: IP44,IP54,IP55;
14. Frame material: aluminum body(56-132 frame), cast iron(71-355 frame)
15. Terminal box : Top or Side
16. Cooling Method: IC411 Standards;
17. Altitude: No more than 1,000 meters above sea level;
18. Packing: 63-112 frame be packaged by carton&pallets
132-355 frame be packaged by plywood case;

19. Certifications: CE, CCC, ISO9001: 2008
Company Introduction:

Zhejiang Yachan Electrical Machinery Co., Ltd. is a modern enterprise specializing in producing all kinds of small and medium motors. Its products mainly include Y, Y2 and IE2 series three-phase asynchronous motors, MS aluminum shell motors, YD series multi-speed motors, YCT series electromagnetic variable-speed motors, YVP variable-frequency and variable-speed motors, YEJ electromagnetic braking three-phase asynchronous motors, YC/YCL and YL single-phase series motors, JY single-phase asynchronous motors and MY/ML aluminum shell single-phase asynchronous motors. The company is located in Lianshu Industrial Zone, Wenling, next to National Highway 104, Huangyan Airport and Haimen Port, enjoying very convenient sea, land and air transportation. Since its inception, the company consistently adheres to the policy of "Develop Technology to Expand Market, Enhance Quality to Create Brand, Strictly Manage to Increase Benefit, and Based on Integrity to Be World-renowned", and insists on first-class quality to create first-class enterprise.

Our Advantages
Factory Advantages

1 . 15 years history

2. Competitive Price

3. Guaranteed Quality

4. Fast delivery time, Normal models about 15-20days , another not normal models need about 30days

5. 100% testing after each process and final testing before packing ,all raw material is good quality .100% cooper wire, Cold-rolled silicon steel sheet,good quaility shafts ,bearings,stators ,fan,fan covers.and so on.

6. High efficiency

7. Low noise

8. Long life

9. Power saving

10. Slight vibration

11. It is newly designed in conformity with the relevant rules of IEC standards, Strictly and Perfect Management is guaranteed for Production ;

12. Professional Service

13. Warranty: 12 months from date of delivery

14. Main Market: South America, Middle East, Southest Asia, Europe,Africa and so on


15. We have Certification for CE, CCC, ISO9001,High quality and competitive price !
Product Parameters

Y2 Three-phase Asynchronous Electric Motor
1). Power:	0.12KW-315KW;
2). Frame:	H56 to 355;
3). Shell:	cast iron body , aluminum body ;
4). Pole:	2/4/6/8 poles;
5). Mounting arrangement:	B3/B5/B14/B35/B34 or other;
6). Voltage:	220V, 380V, 400V, 415V, 440V or on request (50Hz or 60Hz);
7). Protection class:	IP54 / IP55 /IP65;
8). Duty/Rating:	S1 (Continuous);
9). Cooling method:	IC411 (SELF-FAN cooling);
10). Insulation class:	F;
11).Standard:	(IEC) EN60034-1 & EN1060204-1.
