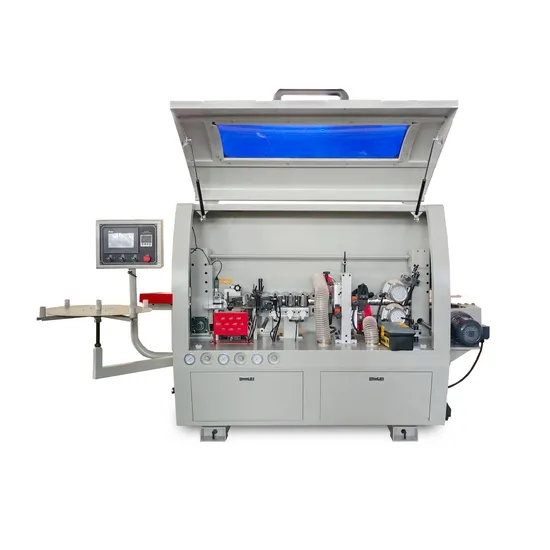

Factory Supply Directly Automatic Edge Banding Machine Edge Bander Zd300

Product Description

Technical Paremeters
ZD300 Straight edge banding machine
Fully automatic Support customization
Excellent quality One-year warranty

Model	ZD300
Thickness of banding	0.4-3mm
Width of banding	10-60mm
Thickness of workpiece	10-60mm
Heating power	1.5kw
Feeding motor power	2.2kw
Glue post motor	0.37kw
Fine trimming motor	0.75*2 kw
Polishing motor	0.18*2 kw
Feeding speed	13m/min
Air pressure	0.7Mpa
Workpiece length	>=100mm
N.W.	640kgs
Overall dimension	2470*860*1520mm

Product Details
Screen Control Panel:
#Touch screen is made from Delta(Taiwan) brand PLC control system and operation panel.
#AUTONICS(Korea) brand temperature controller,high flexiable shielded cable,output stability.

Electrical Components:
#Homag(Germany) brand original driver,double protection and never hurt board.
#Delta(Taiwan) brand inverter,power-off protecton.

Glue mechanism:
The glue pot is made of imported special ball bearing,high hardness and super wear-resistant material rubber box,the stripping shaft is patent design.Adhesive surface almost up to 99.999%, glue output can be adjusted.

Conveyor guide rail :
#Using bearing steel, chromium plating treatment which is wear-resistance and rust-resistance, high straightness, lower friction, conveying speed is uniform and stable.
#Front and rear feeding in/out plate, to ensure the working piece runs stable, more convenient to connect material.
#Conveyor chain is made of Germany high quality silica gel,once die-casting,wear-resistant reach to international standard,smooth and no jump

Conveyor motor:
Customized high power,high speed Taiwan brand,power output stable,thermal protection system improves the safety factor.
Fine trimming:
High frequency motor, trimming quantity and radian can be calculated in advance, linear error not exceed 0.01mm.

Buffing:
New mechanism solves the problem that the commonly used mechanism in the market is not easy to adjust and change the wheel in the wear of the polishing wheel. The new mechanism can be adjusted by turning the hand wheel.
