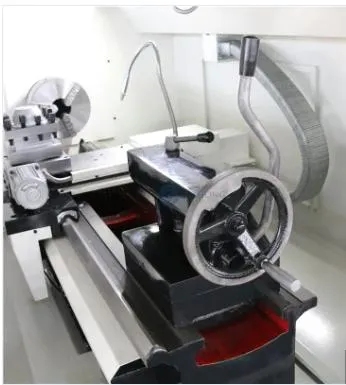

High Precision Ck6170 Horizontal CNC Metal Lathe Machine CNC Milling Machine 5 Axis
| US$10,000.00-15,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK6170
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Condition
New
Frequency Converter
15kw
Main Motor
15kw
Manual Chuck
K11-500
Cooling Pump
210W
Transport Package
Seaworthy Packing
Specification
3000*1700*1800mm
Trademark
JT
Origin
China
HS Code
8458110000
Production Capacity
1500 Sets/Year
Product Description
Automatic CNC lathes automatically execute machining tasks through pre-programmed computer instructions, greatly reducing manual operation and improving production efficiency.
High precision machining CNC lathes use advanced control systems and high-precision sensors to achieve micron precision machining, ensuring consistency and high quality for each part. Diversified processing function CNC lathes support turning, boring, drilling, tapping and other processing operations, can complete the complex shape and structure of the parts processing.
Efficient production CNC lathe with high-speed rotation and fast feed function, shorten processing time, improve production efficiency, suitable for mass production.
Stability and reliability CNC lathe structure is strong, durable, stable operation, can work continuously for a long time, reduce equipment failure rate and downtime. Product Parameters
| ITEM | UNIT | CK6170 | |
| General rule | CNC system | GSK | |
| Overall dimensions (One meter machine tool) | mm | 3000*1700*1800 | |
| Net weight | kg | 2800 | |
| Scope of work | Maximum workpiece rotation diameter of bed body | mm | 780 |
| Maximum machining length | mm | 950 | |
| The X axis | mm | 560 | |
| Maximum Z-axis stroke | mm | 950 | |
| Bed | Width of bed rail | mm | 490 |
| Maximum apex distance | mm | 950 | |
| Spindle | Spindle head type | C11 | |
| Taper of spindle inner hole | Metric No. 90 (1:20) | ||
| Main shaft aperture | mm | 105 | |
| Spindle speed | rpm | Three speed variable frequency, stepless speed change in gear, 45-260140-800280-1600 | |
| Spindle motor power | kw | 15 | |
| Manual three - jaw collet dimensions | Manual three jaw chuck 500 | ||
| Servo shaft | X/Z ball screw | 2505/4010 | |
| X /Z axis motor power | nm | 10/15 | |
| Working accuracy | Fast feed speed | m/min | 6;8 |
| Positioning accuracy | mm | X axis ≤ 0.01 Z axis ≤ 0.015 | |
| Repeated positioning aocuracy | mm | X axis s 0.01 Z axis ≤0.01 | |
| Roundness | mm | ≤ 0.07 | |
| Consistency in diameter | mm | ≤ 0.03/Length 300 | |
| Flatness | mm | ≤ 0.02/Diameter 300 | |
| Surface roughness (Steel parts) | nm | <Ra1.6 | |
