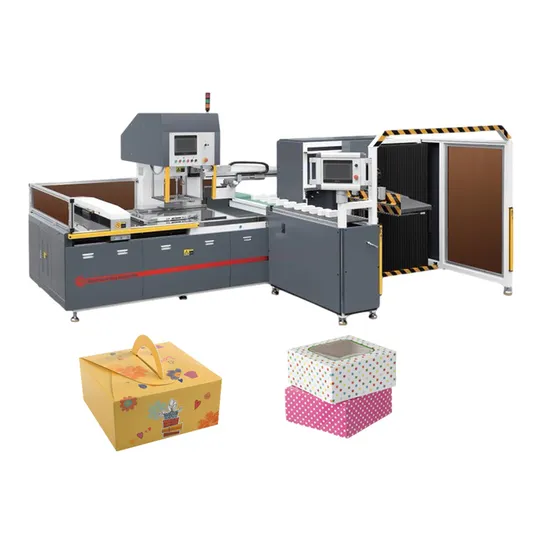

Paper Die Cutting Stripper Machine for Cardboard Box Making

Product Description

Automatic Waste Stripping Machine

Sample Show

Working Flow

Main Features

Automatic stripping machine is a professional equipment for automatically stripping the waste from die cut paper sheet. It replaces manual labor and greatly upgrades working efficiency of die-cutting products in paper or plastic materials. It applies to print & pack industrial, post-press, after paper creasing and die cutting.This stripper machine make your scrap removal efficient after the die-cutting process. The die-cut strip machine applies to the production lines of hang tags, paper box, paper cup, food box, plastic box, and so on.
1. Taking out finished products after die cutting process,for waste stripping.
2. Applied for many die-cut product such as labels, hang tags, business cards, gift boxes, food boxes,
paper cups and other die cutting products in paper or plastic, PU leather.
3.Automatically taking out product with manipulator arm and stack product onto delivery belt.
4. Rotary head of stripping to take out the opposite direction die cutting products easily .
5. Collection station to remove the products off the machine automatically.
6. PLC controlled with smart & easy operation.
7. Automatic lubrication system for machine better maintenance.
8. Different shapes can be custom-made as customer requirement.

Technical Parameter

Model	QDQF-920TRP	QDQF-1080TRP
Machine Size	L4200 x W2800 x H1950	L4600xW3000xH1950
Max sheet size (X x Y) mm	920 x 680	1080 x 780
Min sheet size (X x Y) mm	550 x 400	650 x 450
Max pile height / mm	100	100
Min pile height / mm	40	40
Work table height mm	850	850
Max product size to be punched out	360 x 360	390 x 390
Min. product size to be punched out	30*30	30*30
Stripping speed times/min	15-22	15-22
Max. force (bar)	70	70
Air consumption L/min	5	5
Manipulator Grip Range /mm	30-280	30-300
Manipulator Grip Weight	50-1500g	50-1800g
Max Power	6.9kw 380V	6.9kw 380V
Net Weight	3.4T	3.8T
Package Size	2000x1800x1900	2000x1800x1900
	2700x1950x2250	3100x2250x2250
Gross Weight	3.6T

Company Information

Wenzhou Qian Ding machinery Co., Ltd is a professional manufacturer of waste stripping machine,paper hole drilling machine, we provide perfect solution for the die-cutting product waste removing, save the labor cost very much and make your die-cut product in higher quality. Our machines are widely used for the production lines of box making, gift box making, hang tag making, label making, paper cup making, and other products need to be die-cut.
As a innovation company, we value the technology,and quality very much. We pay attention to the scientific concept of development, enhancing the corporate culture, and injecting the vitality to modern enterprise, which make our company have stronger competitiveness.
