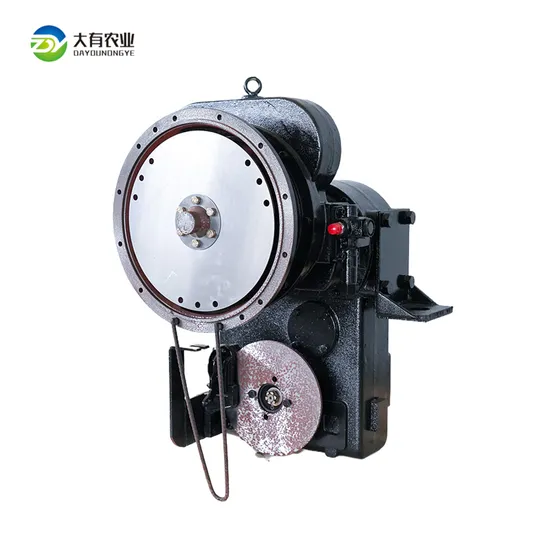

Plant Engineering Machinery Power Shift Transmission Planetary Gearbox for Power Transmission

Product Description

Plant engineering machinery Power shift transmission Planetary gearbox for power transmission
Product Description
Features of construction
1. the transmission type is fixed shaft type, normal mesh, hydraulic shift, small shift impact.
2. Its two clutch shells are integrated and installed on the same shaft, and the four groups of clutches work together to synthesize two forward gears and two back gears with compact structure and high transmission efficiency.
3. The front end of the gearbox is equipped with a brake for parking braking. Detailed Photos
Product Parameters

Engine input power	40-55KW
Engine input speed	1800-2400 r/min
Transmission ratio of each gear	FI=7.01	FI=3.67	FI=4.96
	FII=2.78	FII=1.46	FII=1.96
	RI=7.01	RI=3.36	RI=4.96
	RII=2.78	RII=1.46	RII=1.96
Working fluid	6#/8# hydraulic transmission oil
Control valve oil pressure	1.2-1.5MPa
Lubricate cooling oil pressure	0.15-0.3MPa
Operating temperature	80-110ºC

Gearbox dimensions
