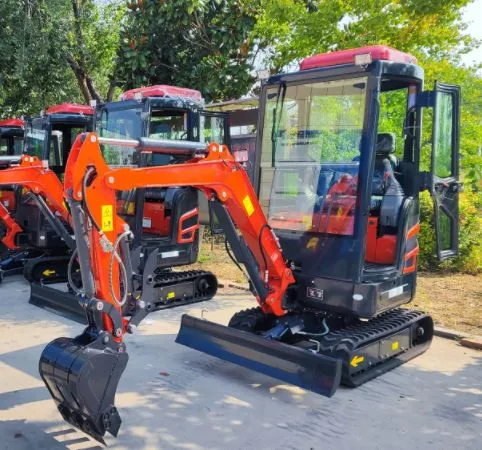

Farm Garden Used 1.7 Ton Micro Digger Mini Excavator with Cabin

Product Description

China hydraulic mini excavator with competitive prices --CE ,EPA , Euro 5 We will provide :
1. English manual with sketches of machine structure of this standard model;
2. Full catalog of QILU mini excavators for reselling(pictures and videos for customers reselling);
3. Full videos about operating teaching including the after sale services steps;
4. Extra filters and toolbox for easy maitain;
5. Spare parts by air express(low weight);
6. 30% advance payment for production starting,the balance after the customer'sconfirmation by videos and pictures. We also have 1ton,1.5 ton, 1.6 ton,1.8 ton, 2 ton, 2.5ton and 3.5ton mini Excavator for you to choose! Product Parameters
Product Details
Model:QLN-10PRO Standard configuration: Koop Euro V diesel engine/Continental tubing/Standard bucket Optional: Briggs & Stratton gasoline engine/Kubota D722 diesel engine /4 legs roof/Safety frame/Side swing/Chassis telescopic/Hydraulic oil radiator
Parameter

Overall size	Unit	QLN-10 Pro
Total Length	mm	2600
Total Width	mm	860
Total Height	mm	1480
Bulldozer blade Width	mm	860
Bulldozer blade Height	mm	210
Clawler center distance	mm	680
Clawler length	mm	1200
Crawler width	mm	180
Standard bucket width (With/without edge tooth)	mm	360(310)
Wheel spacing	mm	670
Max. Digging Height	mm	2580
Max. Dumping Height	mm	1830
Max. Digging Depth	mm	2000
Maximum depth of vertical arm excavation	mm	1600
Max.Digging distance	mm	2850
Mini. Turning radius of front end	mm	1290
Max.Digging distance on the ground	mm	2700
Max.Bulldozing height	mm	260
Max.Bulldozing depth	mm	190
Operating Weight	kg	1000
Bucket Capacity	m³	0.022
Engine Brand		Koop EURO5
Engine Model		192F
Rated Power	KW/rpm	7
Displacement	L(cc)	0.499
Swing speed	r/min	11
Gradeability	°	25(30)
Ground pressure	kpa	0.35
Bucket digging force	KN	6.5
Fuel tank capacity	L	5.5

Model:QLN-17PRO Standard Configuration: Kubota D722 Euro 5 Diesel Engine/Continental Oil Pipe/Standard Bucket/4 legs roof/Side Swing Optional: Yanmar diesel engine/Fan cab/Heater cab/Chassis telescopic
Parameter

Overall size	Unit	QLN-17Pro
Total Length	mm	3300
Total Width	mm	1110
Total Height	mm	2360
Bulldozer blade Width	mm	1110
Bulldozer blade Height	mm	270
Clawler center distance	mm	883
Clawler length	mm	1450
Crawler width	mm	230
Standard bucket width (With/without edge tooth)	mm	440(400)
Wheel spacing	mm	1120
Max. Digging Height	mm	3310
Max. Dumping Height	mm	2370
Max. Digging Depth	mm	2120
Maximum depth of vertical arm excavation	mm	1535
Max.Digging distance	mm	3640
Mini. Turning radius of front end	mm	1660
Max.Digging distance on the ground	mm	3570
Max.Bulldozing height	mm	260
Max.Bulldozing depth	mm	190
Operating Weight	kg	1700
Bucket Capacity	m³	0.04
Engine Brand		Kubota EURO5
Engine Model		D722
Rated Power	KW/rpm	10.2
Displacement	L(cc)	0.898
Swing speed	r/min	9
Gradeability	°	58(30)
Ground pressure	kpa	27
Bucket digging force	KN	13.8
Fuel tank capacity	L	18

QLN-20PRO
Standard Configuration: Kubota Euro 5 D902 Diesel Engine/Continental Oil Pipe/Standard Bucket/4 legs roof/Side Swing/Chassis telescopic/High and Low Speed
Optional: Yanmar diesel engine/Fan cab/Heater cab

Parameter

Overall size	Unit	QLN-20Pro
Total Length	mm	3570
Total Width	mm	990/1240
Total Height	mm	2250
Bulldozer blade Width	mm	990/1240
Bulldozer blade Height	mm	268
Clawler center distance	mm	760/1010
Clawler length	mm	1585
Crawler width	mm	230
Standard bucket width(With/without edge tooth)	mm	450(400)
Wheel spacing	mm	1230
Max. Digging Height	mm	3540
Max. Dumping Height	mm	2440
Max. Digging Depth	mm	2310
Maximum depth of vertical arm excavation	mm	1910
Max.Digging distance	mm	3900
Mini. Turning radius of front end	mm	1430
Max.Digging distance on the ground	mm	3840
Max.Bulldozing height	mm	245
Max.Bulldozing depth	mm	200
Operating Weight	kg	2000
Bucket Capacity	m³	0.04
Engine Brand		Yanmar EURO5
Engine Model		3TNV74F
Rated Power	KW/rpm	10.8
Displacement	L(cc)	0.898
Swing speed	r/min	7.5
Gradeability	°	58(30)
Ground pressure	kpa	25.5(0.245)
Bucket digging force	KN	15.2
Fuel tank capacity	L	18

QLN-25PRO:Optional Fan Cabin Standard Configuration: Yanmar Euro 5 Diesel Engine/Continental Oil Pipe/Standard Bucket/4 legs roof/Side Swing/Chassis telescopic/High and Low Speed
Optional: Fan cab/AC cab

Parameter

Overall size	Unit	QLN-25PRO
Total Length	mm	3850
Total Width	mm	1300/1500
Total Height	mm	2380
Bulldozer blade Width	mm	1300/1500
Bulldozer blade Height	mm	292
Clawler center distance	mm	1050/1250
Clawler length	mm	1860
Crawler width	mm	250
Standard bucket width (With/without edge tooth)	mm	460/410
Wheel spacing	mm	1475
Max. Digging Height	mm	3880
Max. Dumping Height	mm	2550
Max. Digging Depth	mm	2320
Maximum depth of vertical arm excavation	mm	1900
Max.Digging distance	mm	4140
Mini. Turning radius of front end	mm	1850
Max.Digging distance on the ground	mm	4015
Max.Bulldozing height	mm	340
Max.Bulldozing depth	mm	270
Operating Weight	kg	2800kg
Bucket Capacity	m³	0.066
Engine Brand		Kubota EURO5
Engine Model		D1105
Rated Power	KW/rpm	14
Displacement	L(cc)	1.116
Swing speed	r/min	9.5
Gradeability	°	58(30)
Ground pressure	kpa	28.4/0.29
Bucket digging force	KN	18.4
Fuel tank capacity	L	28

QLN-30PRO&QLN-35PRO
QLN-30PRO Standard Configuration: Yanmar Euro 5 Diesel Engine/Continental Oil Pipe/Standard Bucket/4 legs roof/Side Swing/Steel Track/High and Low Speed
QLN-35PRO Standard Configuration: Yanmar Euro 5 Diesel Engine/Continental Oil Pipe/Standard Bucket/4 legs roof/Side Swing/Steel Track/High and Low Speed/AC cab

Parameter

Overall size	Unit	QLN-30PRO	QLN-35PRO
Total Length	mm	4485	4485
Total Width	mm	1550	1550
Total Height	mm	2440	2440
Bulldozer blade Width	mm	1550	1550
Bulldozer blade Height	mm	335	335
Clawler center distance	mm	1250	1250
Clawler length	mm	2100	2100
Crawler width	mm	300	300
Standard bucket width (With/without edge tooth)	mm	520/470	520/470
Wheel spacing	mm	1665	1665
Max. Digging Height	mm	4600	4600
Max. Dumping Height	mm	3175	3175
Max. Digging Depth	mm	2880	2880
Maximum depth of vertical arm excavation	mm	2305	2305
Max.Digging distance	mm	4965	4965
Mini. Turning radius of front end	mm	2035	2035
Max.Digging distance on the ground	mm	4845	4845
Max.Bulldozing height	mm	360	360
Max.Bulldozing depth	mm	340	340
Operating Weight	kg	3375	3515
Bucket Capacity	m³	0.09	0.09
Engine Brand		Yanmar EURO5	Yanmar EURO5
Engine Model		3TNV88F	3TNV88F
Rated Power	KW/rpm	18.2	18.2
Displacement	L(cc)	1.64	1.64
Swing speed	r/min	8.5	8.5
Gradeability	°	58(30)	58(30)
Ground pressure	kpa	28.4/0.2	28.4/0.2
Bucket digging force	KN	26.5	26.5
Fuel tank capacity	L	40	40

Mini Excavator Attachments
2022 Bauma-Construction and Mining machinery Trade Fair
We are thrilled to announce that our company's participation in the 2022 BMW Exhibition in Germany was a great success! Our team showcased our latest excavator models to attendees from around the world and we were delighted to receive an overwhelming response.
We are proud to have received numerous orders for our excavators, which exceeded our expectations. As we continue to expand our business globally, we are actively seeking new partnerships with dealers who share our passion for quality equipment and exceptional customer service.
If you are interested in becoming a dealer of our excavators or would like to learn more about our products, please do not hesitate to contact us. We would be happy to discuss the benefits of partnering with us and answer any questions you may have.

Once again, thank you for your interest in our excavators and we look forward to the opportunity of working together with you in the near future.
Customer Feedback

Company Profile
Qilu respects quality and service, and wins a good reputation from machinery manufacturers with dedicated and professional services. 1. A leader in the machinery export industry such as construction machinery and agricultural machinery, with export experience in more than 50 countries and regions. 2. A comprehensive foreign trade export company with dozens of types of mechanical equipment, excavators, tractors, and loaders to meet the different needs of customers. 3. More than 100 salesmen, establish and maintain good relationship with customers.16 years of export experience, to provide customers with the best export services. 4. Multiple product managers track product usage, provide technical support, respond quickly, and provide 7*24 online customer service to solve customer feedback problems in a timely manner.
5. Overseas warehouses will be established overseas soon to provide overseas customers with the most professional and timely after-sales service. Provide other customized services according to the specific needs of dealers, and provide marketing and publicity support.
Certifications


FAQ

Q:Are you a manufacturer or Trader ?
A:We are a professional manufacture , we have our own R&D team and sales team, we provide one-stop service.
Q:What is your payment term ?
A:We accept T/T, L/C at sight, Western Union, Paypal etc.
Q:How long is the validity of quotation ?
A:Generally,our price is valid within one month from the date of quotation .The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market .
Q:What is your delivery time ?
A:Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit.
If we don't have the products in stock, we will arrange the production right now, the delivery time will be 30-45 days,It depend on the order quantity.
Q:Do you provide OEM/ODM Service ?
A:Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets
Q:Do you have CE certificate ?
A:Yes, most of our products have the CE certificate
Q:How can we ensure quality?
A:The final inspection is always carried out before shipment.
Q:How to install the equipment after purchasing ?
A:We will provide professional installation video to illustrate.Also provide manual.
Q:Do you offer a guarantee?
A:Yes, we guarantee our product for one year. Provide after-sales service support andagricultural technical support.
Q:What is your MOQ?
A:1Sets
