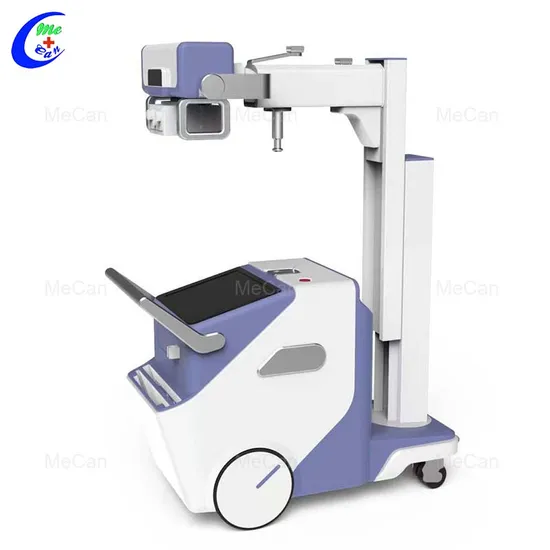

Diagnostic Imaging Mobile Digital Radiography X Ray Machine

Product Description

Diagnostic Imaging Mobile Digital Radiography X Ray Machine
Model: MCI0704 Product Description
Features of our Mobile X Ray Machine:
1.Wisdom in the core, wisdom in the type, peace in the heart
2.High-power design, high-performance endurance battery, fully charged can expose more than 200 times.
3.Excellent performance, excellent image, flexible configuration, green and safe
Specification:

Power	32KW	50KW
Power supply	50HZ,60HZ, 220V
mA	10-400	10-630
mAS	0.1-320	0.4-1000
KV	40-125kV 1kV step	40-150kV 1kV step
Focus size	Default 0.6*0.6mm/1.5*1.5mm dual focus

Superior performance
1.Traditional and classical structure makes the operation of each shooting part accurate and simple..
2.Linkage movement, automatic tracking.
3.Automatic tracking of location parameters, same screen display, simple operation, accurate.
4. With AEC, APR automatic exposure;
5. Fault self-diagnosis and display
Column:
1. The rotation angle of the column is -145°~180°, and the error is ±2°.
2. The tube and beam limiter rotate up and down along the horizontal axis at an angle of -90°~45°, with an error of ±2°.
3. The vertical movement stroke of the focus of the X-ray tube assembly is 95cm, with an error of ±2cm.
4. The rotation angle of the tube and the beam limiter along the horizontal direction is greater than ±180°.
5. The up and down stroke of the column is 800cm with an error of ±2cm.
Detailed Photos
