Tombstone CNC Machine for Cutting Engraving Polishing Profiling

Product Description

Product Parameters

Model	ZLBS-600CNC/5A	ZLBS-600CNC/5+1A	Unit
Worktable size	L3500*W2000	L3500*W2000	mm
Maximum Processing	L3500*W2000*H500	L3500*W2000*H500	mm
X.Y. Z-axis Transmission	X-axis adopts #30 Linear Guide Rail + helical rack and gear + Planetary reducer. Y-axis adopts #35 Linear Guide Rail + helical rack and gear + Planetary reducer. Z-axis adopts #35 Linear Guide Rail+ Ball screw+ Planetary reducer.	X-axis adopts #30 Linear Guide Rail + helical rack and gear + Planetary reducer. Y-axis adopts #35 Linear Guide Rail + helical rack and gear + Planetary reducer. Z-axis adopts #35 Linear Guide Rail+ Ball screw+ Planetary reducer.
C-axis	Head rotate 0°-360°, with Robot Reducer	Head rotate 0°-360°, with Robot Reducer
A-axis	Head tilt 0°-90° with Robot Reducer	Head tilt 0°-90° with Robot Reducer
Camera brand	Hikvison	Hikvison
Blade diameter	350-600mm	350-600mm	mm
Main motor	self-developed 5-axis special motor 22KW(permanet magnet motor with frequency)	self-developed 5-axis special motor 22KW(permanet magnet motor with frequency)
Control center	Options: 1.Self-developed CNC system for 5 Axis Bridge Saw Machine 2.ESA System from Italy	Options: 1.Self-developed CNC system for 5 Axis Bridge Saw Machine 2.ESA System from Italy
Driving motor	1.5kw Servo motor YUHAI Or ESA	1.5kw Servo motor YUHAI Or ESA
Main motor RPM	6000	6000	RPM
Main Spindle type	Can be put a drill	Can be put a drill
Electric Spindle for Milling Work (Optional)	Without	* Type: electric spindle * Rotating speed: 0-24000 rpm * Power: 5.5kw
Total power	30kw	35kw	kw
worktable flip	85°	85°
Water consumption	2	2	m³/h
Total weight	6	6	t

Product Description

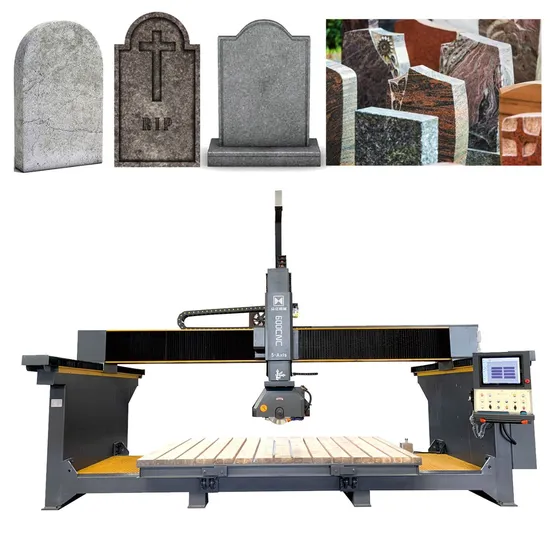

Tombstone CNC Machine for Cutting Engraving Polishing Profiling
It is a CNC Stone Machinery with ZLBS-600CNC/5A+1 5+1-axis smart cutters are available for processing marble granite headstone/tombstone. It can be used quickly and easily due to its excellent precision and efficiency. After taking a photo and transferring the design sketch to the stone, the machine will begin operating on its own.
The primary component of the machine type ZLBS-600CNC/5+1A can be stored in a high-cube container.
We provide OEM/ODM service.
Features

1. Heavy-duty conjoined structure
The machine is a heavy-duty conjoined structure; it is strong, takes up less space, and is easy to install and move.

2. Head tilt 0°-90°, Head rotate 0°-360°
The A axis can automatically rotate 0-90°, while the C axis can rotate up to 360°.
2. Four-Side Chamfering
This machine has excellent four-side chamfering function, with excellent chamfering range 3500x2000mm
3. CNC System and Built-in Library
The system has a built-in library of conventional-shaped drawings and also supports DXF format imports from designer or countertop measuring gauges.
4. 17" Color Touch-Screen
With an Industrial Computer and a 17" Color Touch-Screen
5. A Camera to Locate the Position:
Use a camera to locate the position of the plate and display it in the cutting procedure.
6. 22-KW permanent magnet motor
A 22-KW permanent magnet motor can be cut along with the thickness of the cutting plate, automatically adjusting the output power, strength, and power-saving environmental protection.
7. Automatic Tool Setting Gauge
An automatic tool setting gauge is equipped that automatically checks the blade.
8. Worktable Turnover 85°
The worktable can be fliped up to 85° automatically, easy for slabs loading
9. Option: ESA System from Italy
10. Option: front sliding door
11. Option:The machine chassis could be hot-dip galvanized, and the worktable could be faced with plastic plate and rubber

Application Pictures
Tombstone Production

1. Cutting Curves
The Maximum running distance of Z-axis is 50cm, and the machine can cut stones in curved shapes with Maximum17cm thickness.
2. Wave Profiling
This Machine can do wave profiling at both X-axis and Y-axis. It can profile small curves for Memorial Headstones, which makes your design possible.

3. High-Efficiency Solution
You can put many pieces of Stones next to each other and do Wave Profiling together. The maximum Quantity can be customized up to 20~30pieces(for 10cm Tombstones).
4. Product Show
This machine can produce Tombstones in high precision according to drawings.
And We also can add a milling cutter on the machine to do engraving work.
