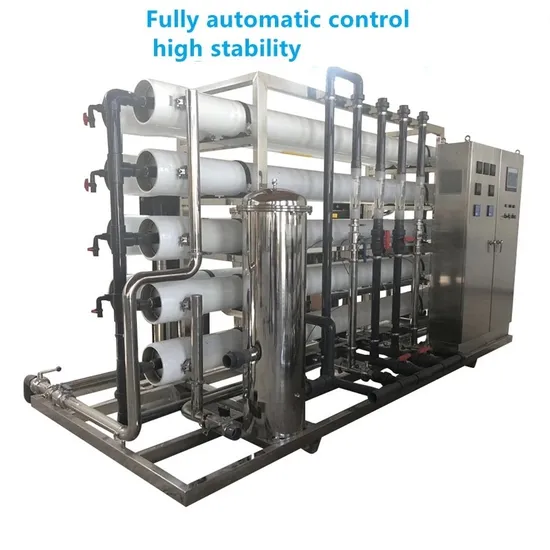

SUS316 Industrial Everse Osmosis RO System Pure Water Treatment, Anti-Penetration Equipment

Product Description

Features:
1, high desalting rate, stable performance, safe and reliable, avoid frequent cleaning, no environmental pollution.
2, compact structure, small size, easy to operate and maintain.
3. The machine is equipped with high and low pressure protection to prevent the machine from breaking.
4. Equipment failure alarm and indication facilitate quick identification of causes and maintenance.
5. On-line conductivity meter to monitor effluent quality at any time.
6, all parts and pipes of the water filtration section are made of 316L stainless steel.
Trait:
1. Continuous operation and production of water, highly automated.
2. No chemical regeneration required, easy to operate and maintain.
3. RO reverse osmosis system uses a one-line membrane.
4, automatically open when there is no water, closed when there is no water or full of water.
5.Ro membrane automatic cleaning, reduce pollution speed.
6. Low pressure switch protects high pressure pump from damage caused by water supply stop.
7. Production water pipeline instrument online monitoring water quality.
Technical parameters:
System output: 0.25T-120T (according to customer demand design)
Supply voltage: 220V/380v 50HZ
Inlet temperature: 5ºC-45ºC
Influent PH: 4-10
Influent turbidity: ≤1.0NTU
Water inlet SDI: ≤4.0 SDI
Residual chlorine value: ≤0.1mg/L
Operating pressure: 0.8-1.5MPa
Conductivity: ≤10μs/cm
Resistivity: 0.5~18.2 mω.cm
System recovery: 48%-90% (depends on system size and arrangement of RO membrane)
Reverse osmosis system processing:
1,.The original water tank: the volume should not be less than 50% of the water production capacity to store enough water for the water production of the system.
2. Raw water pump: Provide pressure to quartz sand filter/activated carbon filter.
3,.Quartz sand filter: remove suspended matter in the water, colloidal particles, etc., effectively reduce the turbidity of the water, purify the water quality.
4.Activated carbon filter: can effectively absorb organic matter in water, discoloration, odor and other impurities, so as to achieve the deep purification effect of water quality.
5.Softener: remove calcium and magnesium ions in water, reduce its hardness.
6. Precision filter: prevent large particles from being deposited into the ro film and blocking the surface
Ro membrane flow channel, accuracy is 5um.
7. The first stage high pressure pump: the pre-treated water is pressurized and sent to the reverse osmosis system through the high pressure pump.
8. The first stage RO: to achieve the purpose of desalination, purification or concentration separation; It can remove most of the ions in the water, as well as particles, bacteria, organic matter and other impurities. The electrical conductivity of the produced water is between 3-10μs/cm.
9. The first stage RO water tank: buffer and balance the water production of the first stage RO and the second stage RO, and serve as the buffer water supply of the second stage ro film.
10.Secondary high pressure pump: Water from the primary RO is transmitted to the secondary RO through the high pressure pump.
11. Secondary RO: can remove harmful substances, such as particles, colloids, organic impurities,
Heavy metal ions, bacteria, viruses, heat sources and most dissolved salts in water. The electrical conductivity of the produced water is between 1-5μs/cm.
12. Secondary reverse osmosis tank: Store pure water
Physical display1.The beverage industry produces pure water, distilled water, natural water, mineralwater, liquor, liquor blending water, beer saccharification water and draft beer.
2. Pharmaceutical lndustry Water: Pharmaceutical and Preparation Process Water, Medical Hemodialysis
Analysis, biochemical analysis, infusion, etc.
Production of softened water and desalted pure water for thermal boiler, thermal powerboiler, medium and low pressure boiler feed water in factories and mining enterprises.
4. Petrochemical water processor machinery, such as chemical reaction coolingchemicals, fertilizers and fine chemicals, cosmetics manufacturing process.
