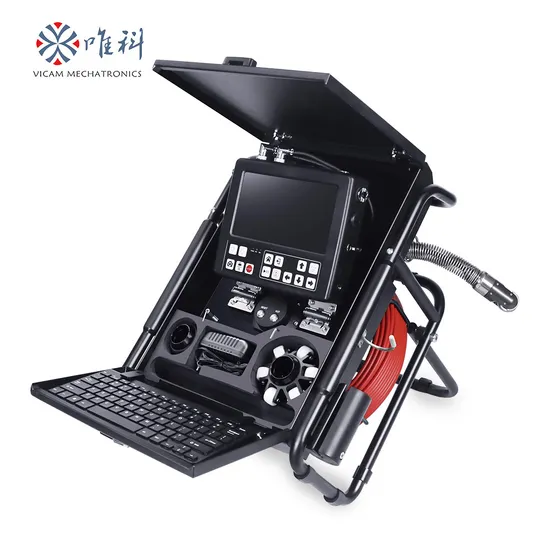

2024 Factory Direct Trade 33mm Portable Pan Tilt Sewer Camera with Locator
Basic Info.
Model NO.
V8-33PTF
Type
CCTV Camera
Sensor
CMOS
HDMI Format
720P
Horizontal Resolution
700tvl
Kind
Manual Focus Lens
Certification
CE
Feature
Waterproof / Weatherproof
Effective Distance
≧30m
Sensor Size
1/4 inch
Remote Control
With Remote Control
Camera Diameter
33mm
LED Lighting
4 PCS White LEDs
Special Features
Waterproof
Lens
Sapphire Glass
Camera Material
Stainless Steel
Viewing Angle
120 Degree
Fiberglass Cable Diameter
7mm
Fiberglass Cable Length
30-50m Optional
Memorize Medium
USB Disk
Cable Reel
58*48*32cm
Transport Package
ABS Case 58 X 48 X 32cm
Specification
CE, RoHS, SGS, UL, FCC
Trademark
Vicam
Origin
Shenzhen, China
HS Code
8525803100
Production Capacity
5000 PCS/Year.
Packaging & Delivery
Package Size
58.00cm * 48.00cm * 31.00cm
Package Gross Weight
25.000kg
Product Description
Vicam 33mm Pan Tilt Sewer Drain Pipe Inspection Camera with 50 60m Push Rod CableFeatures of video pipe inspection camera
1. 360 degree rotation camera head built in 512Hz sonde, Pan 360°,Tilt 180°
2. 1/3 CMOS,2.0MP pilex FHD , waterproof IP68
3. 4 inch IPS lcd screen, 1920X1080 resolution
4. DVR control box with audio ,video recording and photography function
5. 20-50m Dia.7mm soft fiberglass cable
6. USB wireless keyboard to typewrite the words
7. Camera video resolution is 1080P
8. Built in 7000mA li-ion battery inside
9. Digital meter counter function, error is less than 1%
10. Adjust focus manually
11.All-in-One Design ,Easy to Carry, Easy to use Product Description
Main part 1 : HD DVR Control unit
Main part 2 : Camera Head
Camera Head:
* Camera size Φ33mm x 72mm(without spring),total length is 235mm (included the spring connector), the camera head is fixed on the spring connector
* Sensor 1/3" CMOS ,2.0MP pixel
* Waterproof IP68 , View range 120°
* Manual focus function
* Rotation: Pan 360°, Tilt 180°
* 4pcs high light LED lighting adjustable
* Built-in 512Hz transmitter
* Lens window sapphire glass
Main part 3 : Cable Reel
Accessories:
Optional Configuration:
Company Profile
Feedback pictures from customers over the world:
| Brand | VICAM |
| Model | V13-33PTF New Hot Sales |
| Type | Analog camera |
| Sensor | 1/4 inch color CMOS |
| Spectial features | Waterproof /AHD |
| Camera head diameter | 33mm or 50cm |
| Field of view | 120 degree |
| Packing | 1set/carton |
| Carton Size | 58*48*30.5cm |
| Volumen Weight | 22kgs |
| Delivery Time | 5-7days after receiving 100% payment |
Thank you for your attention and welcome to inquiry
