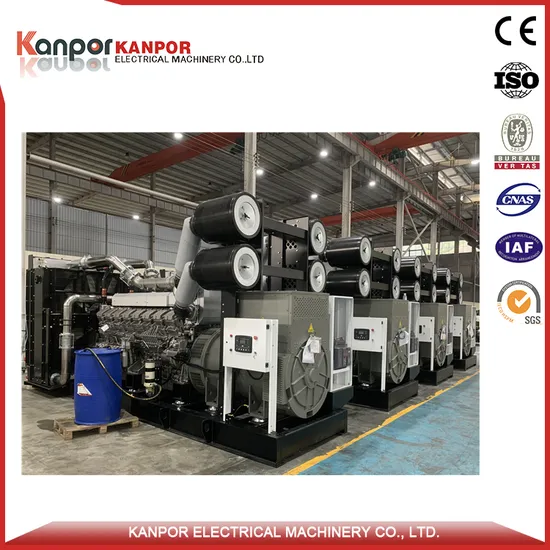

Mitsubishi (SME) 90-2000kVA Diesel Power Generator
| US$5,000.00-250,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
KPM100-KPM2200
Type
Self-Starting Diesel Generator
Installation Method
Fixed
Stroke
Four Stroke
Cooling Method
Water Cooling
Output Type
AC Three Phase
Speed
HSS
Conditions of Use
Land Use
Usage
Common Units, Standby Unit, Emergency Crew, Continuous Running
Landuse Type of Unit
Ordinary
Excitation Mode
AC Rotating Exciter
Certificate
CE ISO SGS Soncap TUV
Voltage
220V/127V 380V/220V 400V/230V 415V/240V 480V/277V
Current
138A-3800A
Engine Model
S6K, S6r2, S12r, S16r
Transport Package
Plywood Case, Plastic Film
Specification
2400x800x1300mm-8000x2200x2300mm
Trademark
Kanpor
Origin
Fujian, China(Mainland)
HS Code
8502131000
Production Capacity
30PCS Per Month
Packaging & Delivery
Package Size
800.00cm * 220.00cm * 230.00cm
Package Gross Weight
12800.000kg
Product Description
1. GENERATOR DATAVoltage Available:
50Hz: 380-400-415V/220-230-240V;
60Hz: 220-380-416-440-480V/110-208-220-240V
Any special voltage is also available as client's request
Prime Power:
Comply with GB/T2820-97(eqv.ISO8528).
Genset can run unlimitedly under certain power range.
One hour 10% over load in every 12 running hours is allowed;
Standby Power:
standby power is the limit value of maximum output for emergency use.
It is off-oil power,overloading is prohibited
2. MAIN SPECIFICATION
| Genset Model | KPM100 | KPM725 | KPM825 | KPM1375 | KPM1500 | |
| Rated Power | KW/KVA | 73/91 | 536/670 | 600/750 | 1000/1250 | 1080/1350 |
| Standby Power | KW/KVA | 80/100 | 580/725 | 660/825 | 1100/1375 | 1200/1500 |
| Rated Voltage | V | 220V/127V 380V/220V 400V/230V 415V/240V 480V/277V 600V/346V | ||||
| Speed | RPM | 1500/1800 | ||||
| Rated frequency | Hz | 50/60 | ||||
| Engine Model | S6K-DT | S6R2-PTA | S6R2-PTAA | S12R-PTA | S12R-PTA2 | |
| Engine Power | KW | 89.7 | 635 | 710 | 1220 | 1315 |
| Air intake way | Turbo | Turbo | Turbo | Turbo | Turbo | |
| Governor | Electronic | Electronic | Electronic | Electronic | Electronic | |
| Cylinder | QTY | 6 | 6 | 6 | 12 | 12 |
| Bore*Stroke | mm*mm | 1302×130 | 170×220 | 170×220 | 170×180 | 170×180 |
| Displacement | L | 6.373 | 29.96 | 29.96 | 49.03 | 49.03 |
| Fuel Consumption | g/kw.h | 245 | 235 | 235 | 235 | 235 |
| Compression Ratio | 17:1 | 14.1:1 | 14.1:1 | 14:1 | 13.5:1 | |
| Alternator Model | STF-274C | STF-354F | STF-634B | STF-634G | STF-734B | |
| Voltage Regulation | AVR | |||||
| Excitation Method | Brushless | |||||
| Open Type Size | mm | 2400x800x1300 | 4200x1400x1800 | 4200x1400x1800 | 4800x1800x2200 | 4800x1800x2200 |
| Open Type Weight | kg | 1380 | 3600 | 4260 | 7800 | 8200 |
| Soundproof Size | mm | 2800x1050x1400 | 5000x1600x2000 | 5000x1600x2000 | 5800x1900x2250 | 5800x1900x2250 |
| Soundproof Weight | kg | 1960 | 5260 | 5900 | 9860 | 10800 |
| Genset Model | KPM1600 | KPM1800 | KPM2000 | KPM2200 | |
| Rated Power | KW/KVA | 1164/1455 | 1318/1650 | 1455/1818 | 1600/2000 |
| Standby Power | KW/KVA | 1280/1600 | 1440/1800 | 1600/2000 | 1760/2200 |
| Rated Voltage | V | 220V/127V 380V/220V 400V/230V 415V/240V 480V/277V 600V/346V | |||
| Speed | RPM | 1500/1800 | |||
| Rated frequency | Hz | 50/60 | |||
| Engine Model | S12R-PTAA2 | S16R-PTA | S16R-PTA2 | S16R-PTAA2 | |
| Engine Power | KW | 1404 | 1620 | 1790 | 1939 |
| Air intake way | Turbo | Turbo | Turbo | Turbo | |
| Governor | Electronic | Electronic | Electronic | Electronic | |
| Cylinder | QTY | 12 | 16 | 16 | 16 |
| Bore*Stroke | mm*mm | 170×180 | 170×180 | 170×180 | 170×180 |
| Displacement | L | 49.03 | 65.37 | 65.37 | 65.37 |
| Fuel Consumption | g/kw.h | 235 | 235 | 235 | 235 |
| Compression Ratio | 13.5:1 | 14:1 | 13.5:1 | 14:1 | |
| Alternator Model | STF-734D | STF-734D | STF-734E | STF-734F | |
| Voltage Regulation | AVR | ||||
| Excitation Method | Brushless | ||||
| Open Type Size | mm | 5200x2200x2350 | 5800x2200x2230 | 5800x2200x2230 | 5900x2200x2300 |
| Open Type Weight | kg | 9500 | 11500 | 12800 | 15500 |
| Soundproof Size | mm | 7000x2200x2350 | 8000x2200x2300 | 8000x2200x2300 | 8000x2200x2300 |
| Soundproof Weight | kg | 12300 | 15600 | 16900 | 21000 |
(1).Full control panel with power indicator light and oil light.
(2).Emergency shutdown for low oil pressure and high water temperature.
(3).Large fuel tank ensure continuous running.
(4).Low noise & vibration.
(5).Compact structure.
(6).Reliable performance.
(7).Easy for installation and maintenance.
(8).50Hz and 60Hz both are available for choice
