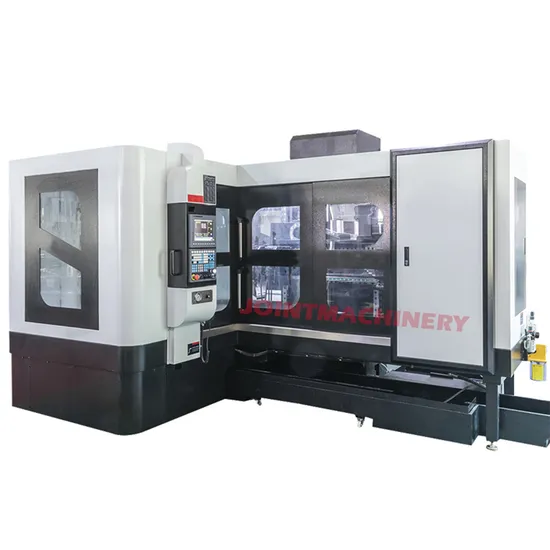

Dh-1100 BTA Metal Drilling Tools CNC Deep Hole Gun Drilling Machine for Metal Processing

Product Description

Drilling stands as the cornerstone of machining operations, representing a pivotal process with vast applications across various fields. Traditional drilling tools, such as the bench drill, milling machine, and radial drill, have traditionally constrained operators to manual repetition, often compromising quality. These methods have faced challenges in terms of safety, efficiency, and processing limitations, impacting both manufacturers and operators. Enter the CNC era-a revolutionary transformation marked by the introduction of the CNC depth drill. This innovation not only liberates operators' hands but also resolves the depth drilling bottleneck, achieving quality comparable to conventional machines while performing drilling, enlarging, and expanding in a single operation. It further automates chip removal, CNC positioning, and processing, ushering in a new era of precision and efficiency.

3 Axis CNC Deep Hole Drilling Machine	4 Axis Vertical CNC Deep Hole Drilling Machine	Multi-Spindle CNC Deep Hole Drilling Machine	6 Axis CNC Deep Hole Drilling Machine

Our precision CNC deep hole drilling machine, crafted by Shenzhen Joint Machinery Co., Ltd., is expertly designed for diverse deep hole processing tasks:
√ Die & Mould Industry: Ideal for water transport holes, center holes, hot runners, guide roller holes, and more.
√ Auto Industry: Perfect for deep hole processing in cylinder heads, crankshafts, hydraulic tubing, plunger bushings, etc.
√ Oil Pump & Lubricating Nipple Industry: Specialized in deep hole processing for oil-injection gas, nozzle valves, plunger bushings, and various spare parts.
√ Textile Machinery Industry: Precisely handles mesopore processing of various spindles.
√ Medical Equipment Industry: Excels in axial processing of materials like titanium alloy and stainless steel.
√ Mine & Oil Machinery: Optimized for deep hole processing on piston rods and cylinder walls.
√ Electrical Power and Steam Turbine Industries: Expertly processes deep holes in rotors, central spindles, valve spindles, unit outer cylinders, and condenser tube plates.
DH-1100 BTA Metal Drilling Tools CNC Deep Hole Gun Drilling Machine for Metal Processing

Model	Unit	DH-1100
Inner diameter of drilling	mm	2.5-30
Max depth of drilling	mm	1100
Table size	mm	1200*800
X axis travel	mm	1100
Y axis travel	mm	800
Z axis travel	mm	1100
Cutting feeding	mm/min	1-300
Max rotary speed of spindle	rpm	7000
Spindle motor	kw	7.5/11
Three axis motor	kw	2.3/3/2.3
Pressure of oil pump	kg/cm	0-150
Capacity of cutting tank	L	800
Max load weight of table	kg	8000
Weight	kg	10000
Dimension	mm	4800*3800*2600

Shenzhen Joint Machinery Co., Ltd. stands at the forefront as a distinguished manufacturer and exporter of CNC lathe machines, CNC deep hole drilling machines, Swiss-type automatic lathes, milling machines, grinding machines, and more. We are dedicated to delivering machines of exceptional quality, seamlessly coupled with unparalleled service for our global clientele. Our commitment to quality control and enhancement ensures that our products adhere to the highest industry standards. Leveraging core technologies from Taiwan and Germany, combined with cutting-edge production equipment and methodologies, we guarantee superior product quality and reliability. Renowned for their precision, stability, and reliability, our machines cater to complex, high-demand machining requirements. Our products, which enjoy global exportation, are celebrated for their recognition and popularity. Our expansive market reach spans Asia, Europe, South America, North America, and beyond. We have forged enduring partnerships with clients from diverse regions, collaboratively generating significant business value.
