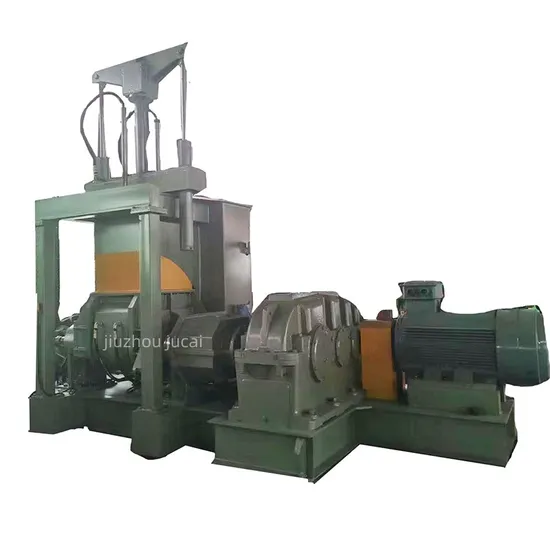

Kneading Machine for Rubber, Dispersion Kneader Mixer Machine, Laboratory Banbury Mixer Machine

Product Description

kneading machine for rubber ,dispersion kneader mixer machine ,laboratory banbury mixer machine Supply Range
Rubber Internal Mixer / Intensive Mixer/ Banbury
It is mainly used for plasticating, mixing and final mixing the stock
Range of specifications:25L-650L
Type of rotor: To be advise
Intermeshing rotor: NG intermeshing rotor
Type of ram: hydraulic type, pneumatic type
Rubber (Plastics) Dispersion Mixer / Kneader It is mainly used for mixing and plasticating rubber or plastics etc.
Range of specifications:1.5L-150L
Product Description

Product Parameters

Model	X(S)N- 1X12-58	X(S)N-3X32	X(S)N- 10X32	X(S)N-20X32	X(S)N- 35X30	X(S)N-55X30	X(S)N-75X30	X(S)N-110x30	X(S)N- 150x30	X(S)N- 200x30	X(S)N- 300x30
Total volume of mixing chamber (L)	3	8	25	45	75	125	180	250	325	440	700
Working volume of mixing chamber (L)	1	3	10	20	35	55	75	110	150	200	300
Driving motor power (KW)	4	5.5	15	30	55	75	110	185	220	280	280/400
Tilting motor power (KW)		0.55	1.1	1.5	2.2	2.2	4	4	5.5	7.5	7.5
Tilting angle (°)	≤140	135	140	140	140	140	140	140	140	140	140
Rotational speed of the rotor (front/rear) r/min	12-58	6-60	32/23.5	32/25	30/24.5	30/24.5	30/24.5	30/24.5	30/24.5	30/24.5	30/24.5
Pressure of compressed air (MPa)	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.6-0.8	0.6--08	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Capacity of compressed air(m3/min)	≥0.3	≥0.3	≥0.5	≥0.7	≥0.9	≥1.0	≥1.0	≥1.5	≥2.0	≥2.0	≥2.0
Weight Kg	800	2000	3300	4500	6500	7800	105000	14500	19500	22500	27500

Machine Display

Company Profile

1.Are your company a trading one or a factory?
Factory + trade (integration), 30 years focusing on rubber machine design and production .
OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of product you need to do and the required specification.
3.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.
4.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change,
necessarily, our engineers may go to your place for better service.
5.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won't be damaged. We've delivered many testing machines abroad by sea or by air without damage.
6.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment -packing - delivery - customer receiving - after service.
