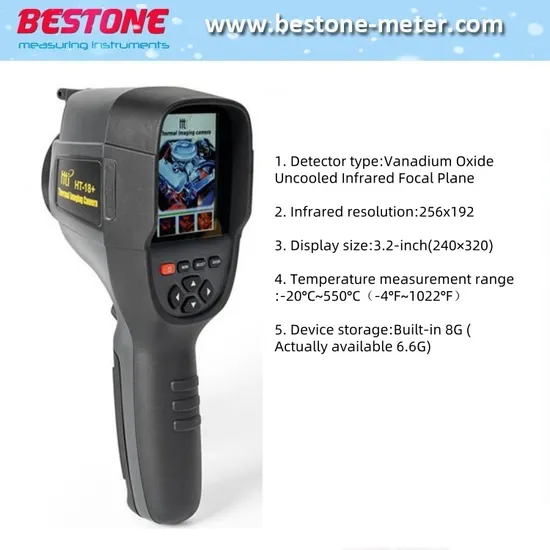

Handheld Thermal Imaging Camera, Thermal Imager Ht-18+

Product Description

Product Description Infrared thermal imaging cameras are widely used in many fields such as medical, public security, fire protection, archaeology, transportation, agriculture and geology. It is an ideal choice for electricians and maintenance technicians to quickly locate problem areas.
Product Feature 1. New Ultra-Sensitive Detector: ADOPTS 12μm ULTRA SENSITIVE DETECTOR 2. High Definition Display Screen :3.2 Inch Display Screen 3. Wide Angle Auto focus: 56° VIEWING ANGLE 4. Automatic Tracking: Three-point simultaneous measurement 5. High-Definition Sensor: Measurable far and near 0.5-40m imaging distance, With visible light of 300000 pixels 6. Measuring Range: -20ºC ~ +550ºC Wider temperature measurement range, more application scenarios, good equipment, one is enough. 7. Dual Light Imaging Technology: The fusion of infrared and visible light, combines the advantages of both infrared and visible light, discovering the integration of recognition and improving efficiency. 8. Five Color Schemes: Multiple pseudo colors can be adjusted, and the image mode can be selected independently. 9. Powerful Offline Analysis Capabilities: Support PC side offline software for professional temperature analysis and quickly generate analysis reports. 10. Battery Endurance: FULL BATTERY LIFE 2-3 HOURS, Design of a dedicated detachable rechargeable lithium battery Using 2200mAh lithium battery Through Type-C USB interface Convenient charging and worry-free battery life. Product Parameters

Model	HT-18+
Detector type	Vanadium Oxide Uncooled Infrared Focal Plane
Infrared resolution	256x192
Pixel Size	12μm
Focal length	4.0mm
Field angle	56°(H)x 42°(V)
IFOV	3.75mrad
Working band	8~14um
NETD	≤50mk@25°C, @F/1.0
Image frame rate	≤25Hz
Focusing mode	Fixed
Emissivity setting	Adjustable from 0.01 ~ 1.00
Temperature measurement mode	Center point/hot and cold spot tracking
Color palette	Rainbow, iron, cold color, white hot, black hot
Temperature measurement range	-20°C~550°C(-4°F~1022°F)
Measurement accuracy	-15°C~550°C±2°C or ±2%; -20°C~15°C±4°C
Other
Display size	3.2-inch(240×320)
Device storage	Built-in 8G (Actually available 6.6G)
Picture /Video format	JPG/MP4
Image analysis function	Support offline analysis on PC
Language	Chinese, English, Russian
Battery Type	Dedicated removable rechargeable lithium battery
Battery capacity	2000mAh
Working time	2~3hours
Power interface	Type-C
Power configuration	5 minutes / 20 minutes / no automatic shutdown
Work temperature	-10°C~+50°C(14°F~122°F)
Storage temperature	-20°C~+60°C(-4°F~140°F)
Relative humidity	10%~85%RH(non-condensing)
Product size	90x105x223mm
Product weight	389g
