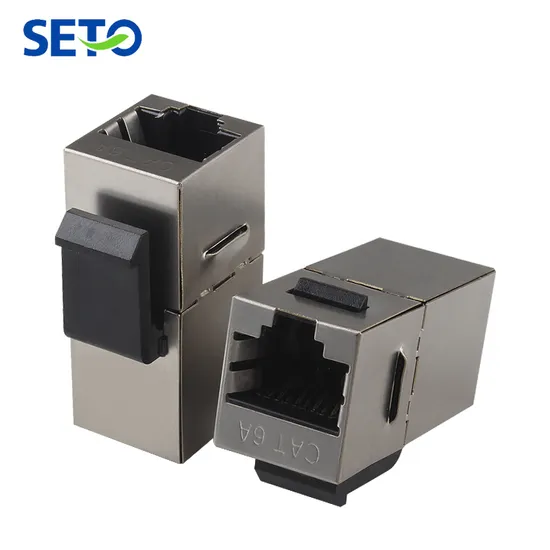

Seto Shielded FTP RJ45 CAT6A Keystone Jack Network Mount Connector

Product Description

Product Description
Are you looking for convenient, safety, best quality products?
Wholesale stp rj45 cat6a keystone jack in-line FTP CAT6A coupler
The specification and performance are as following:
Standard 110 and LSA dual use punching tool make operation more convenient
Electrical Characteristics
DC Resistance: ≤300mΩ
Contact Resistance: ≤20mΩ
Dielectric strength: 1000V(AC750V)1min no break down and flashover
Insulation Resistance: ≥1000MΩ
Physical Characteristics
Phosphor bronze with nickel plated , connector pins with golden plated
Inserting Duration: ≥750 times
Jack housing plastic part: Stainless steel and UL 94V-2
Working temperature: -25ºC~60ºC

Voltage Rating	AC 125V
Current Rating	1.5 AMPS
Plating	3u inch,6u inch,10u inch,15u inch,20u inch,30u inch,50u inch
Housing	PC(UL94V-0);ABS(UL94V-0);PC/ABS(UL94V-0) and stainless steel
Insertion Force	2 pins 3.5N 4 pins 5N 6 pins 7.5N 8 pins 9 N
Contact	8P8C

1. It is suitable for connecting the communication sockets between the devices and the working area to realize signal transmission.
2. Compact shape so that the product appearance is simple and beautiful.
3. Equipped with dust cover to protect the module, cover dust and dirt into.
4. Plug and socket for 1000 or more times.
5. Contact resistance: Contact resistance ≤2.5MΩ under normal atmospheric pressure.
6. Insulation resistance: insulation resistance ≥1000MΩ under normal atmospheric pressure.
7. High pressure resistance: AV 750V1 minutes without breakdown and arc phenomenon.
8. Plastic raw material: Stainless steel and PC PBT fire rating is UL 94-V0.
9.RJ45 interface terminal: Gold-plated 3μ" ~ 50μ".
Detailed Photos


Certifications
Product cataglories https://wz-stodz.en.made-in-china.com/product-list-1.html
Company Profile
Packaging & Shipping
FAQ 1. Who are we?We are based in Zhejiang, China, start from 2012,sell to many countries. There are total about 11-50 people in our office.2. How can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.What can you buy from us?Keystone Jack; Face Plate; Wall Switch And Socket, Floor Socket, Integrated Wiring4. Why should you buy from us not from other suppliers?Yueqing Shengtuo Electronics Co., Ltd. is an electronic component manufacturer with product development, design, mold manufacturing, production and operation. The company has strong technical development capabilities and the introduction of international5. What services can we provide?Accepted Delivery Terms: EXW,FOB,CIF;Accepted Delivery Methods: Express,Ocean, Air, Land transportation;Accepted Payment Currency:USD,CNY;Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union;Language Spoken:English,Chinese
