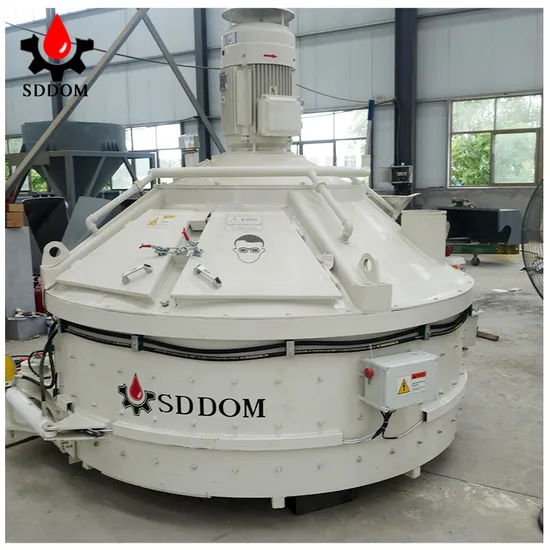

Electric Portable Concrete Mixer Self Loading Concrete Mixer for Sale
| US$15,000.00-35,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Mixer
Structure
Cylinder Type
Productivity
35m²/h
Feeding Height
1400mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000, CE
Condition
New
Color
White
out Capacity
1000L
Input Capacity
1500L
out Mass
2400kg
Mixing Power
37kw
Weight
6200kg
Planet
2 Unit
Main Planet
4 Unit
Paddle
1 Unit
Discharging Paddle
1 Unit
Discharging Power
3 Kw
Transport Package
Standard Package
Specification
2230x2080x1880mm
Trademark
SDDOM
Origin
China
HS Code
8474310000
Production Capacity
100sets/Month
Product Description
Concrete Mixer electric portable concrete mixer self loading concrete mixer for saleTwin shafts mixer and Planetary mixer both are provided.
Twin shafts mixer: Mixing Blade and scraper
With 17% - 23% Cr Chromium
There is oil temperature testing sensor inside the reducer.
Test oil temperature automatically
Planetary mixer: The mixers with vertical shafts allow the rapid mixing of all types of quality concrete (dry, semi-dry and plastic).
The great versatility of the mixer enables it to be used not only in the production of concrete,
but also in the mixing of materials for the production of glass, ceramics, refractory materials, etc.
| Planetary Mixer Technical Parameters | ||||||
| Model | Filling Volume(L) | Feeding Capacity(KG) | Compacted Concrete(L) | Mixing Power (KW) | Mixing Star*MixingBlade (Qty) | Weight (T) |
| MP50 | 75 | 120 | 50 | 3 | 1*2 | 0.7 |
| MP100 | 150 | 240 | 100 | 5.5 | 1*2 | 1 |
| MP250 | 375 | 600 | 250 | 11 | 1*2 | 1.8 |
| MP330 | 525 | 790 | 330 | 15 | 1*2 | 2.2 |
| MP500 | 750 | 1200 | 500 | 18.5 | 1*2 | 2.5 |
| MP750 | 1125 | 1800 | 750 | 30 | 1*3 | 3.5 |
| MP1000 | 1500 | 2400 | 1000 | 37 | 2*2 | 5.5 |
| MP1500 | 2250 | 3600 | 1500 | 55 | 2*2 | 6.5 |
| MP2000 | 3000 | 4800 | 2000 | 75 | 3*2 | 8.5 |
| MP2500 | 3750 | 6000 | 2500 | 90 | 3*3 | 10.5 |
| MP3000 | 4500 | 7200 | 3000 | 110 | 3*3 | 11 |
| Features | ||||||
JS Twin Shafts Mixer
Introduction of MP Series Planetary Mixer
| 1.Gearing System | |
| Driving system consists of motor and hardened surface gear (patented product) which is specialized designed by our company. The improve model has lower noise, longer torque and more durable. Even in strict production conditions, the gearbox can distribute power effectively and evenly to each mix and device, ensuring normal operation, high stability and low maintenance. | |
| 2.Mixing Device | |
| Compulsory mixing is realized by composite moves of extruding and overturning driven by rotating planets and blades. Specialized discharge scraper has been designed according to discharge speed in order to increase productivity. | |
| 3.Discharging Device | |
| According to the different demands of customers, the discharging door can be opened by hydraulic, pneumatic or by hands. The number of the discharging door is three at most. And there is special sealing device on the discharging door to ensure the sealing reliable. | |
| 4.The Hydraulic Power Unit | |
| A special designed hydraulic power unit is used to provide power for more than one discharging gates. Equipped with manual discharging function, on emergency, these discharging gates can be opened by hand. | |
| 5.Mixing Locus Diagrams | |
| The diagram shows the perfect mixing action of the planetary mixer from 6 to 60 seconds after materials added. Note that the floor is completely swept by the mixing star's action every 4 revolutions(6 seconds) and that each zone is covered at regular intervals in time. | |
| 6.Packing | |
Customer Visiting
