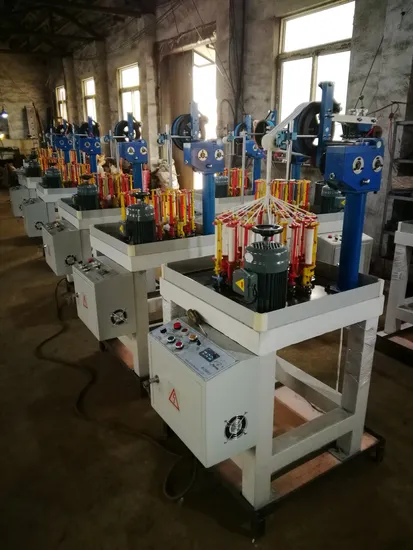

24 Spindles Round Rope Braiding Machine
| US$1,200.00-1,400.00 | 1 set (MOQ) |
Basic Info.
Model NO.
QX90-24-1
Knitting Product Type
Rope
Knitting Style
Round
Knitting Method
Braiding
Needle Style
Spindle
Needle Bar Style
Braiding
Computerized
Non-Computerized
Certification
CE
Condition
New
Speed
High Speed
Power Supply
380/220V
Transport Package
Plywood Case
Specification
500kg
Trademark
QX
Origin
Jiangsu
HS Code
8446100000
Production Capacity
200 Sets/Month
Product Description
90 series 24 spindles high speed braiding machinefor various shoelaces/ropes/cords.
| Model | QX90-24-1 |
| Horn gear size | 90mm |
| Head number | 1 |
| Spindle number | 24pcs |
| Bobbin number | 48pcs |
| Bobbin size | Φ47*141mm |
| Motor Power | 380V/220V |
| Max. RPM | 330RPM |
| Production | About 1meter/minute (for reference) |
| Machine size | 850*700*1250mm (for reference) |
| Braiding range | Φ2-15mm (for reference) |
| Traction/take up winding device | Not included |
| Rubber feeding device | Not included |
| Speed adjuster | included |
| Yarn breaking stop device | included |
| Braiding pitch | Adjustable |
| Packing | Plywood case |
