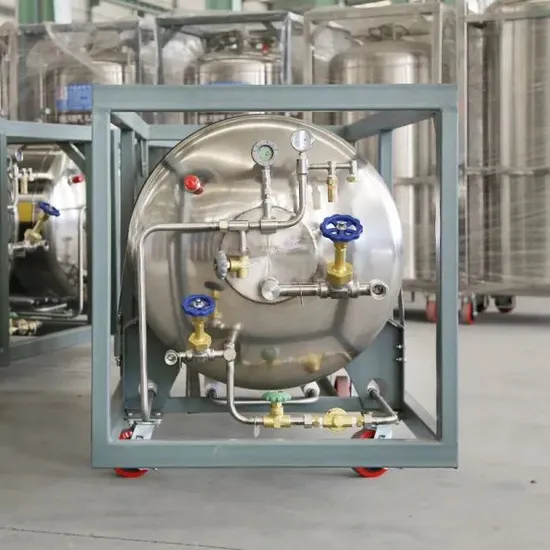

Cnjx Customization 80L-1000L Liquid Oxygen/Nitrogen Cylinder Dewar

Product Description

Product Description
LO2,LN2,LAr,LCO2,LNG Cryogenic Liquid Cylinder Dewar Tank
Ready in stock & Customized Support
What is a dewar tank? A dewar tank, also known as a Dewar flask or simply a Dewar, is a specialized container used for storing and transporting cryogenic liquids, such as liquid nitrogen, liquid oxygen, or liquid helium. It is designed to keep these substances at extremely low temperatures, close to or at their boiling points, which can be as low as -196 degrees Celsius (-321 degrees Fahrenheit) for liquid nitrogen.
Why is it called a dewar?
The Dewar tank is named after its inventor, Sir James Dewar, a Scottish physicist and chemist who developed the container in the late 19th century. The primary purpose of a Dewar tank is to provide excellent thermal insulation to prevent the cryogenic liquid inside from rapidly evaporating.
Cryogenic Liquid Nitrogen Dewars Structure The construction of a Dewar tank usually consists of two main parts:
Inner Vessel: This is a double-walled container with an inner and outer chamber. The inner chamber holds the cryogenic liquid, while the space between the inner and outer walls is usually evacuated or filled with a vacuum to minimize heat transfer through conduction and convection.
Outer Jacket: The outer jacket surrounds the inner vessel and acts as an additional layer of insulation. It is typically made of metal and helps to further reduce heat transfer from the surrounding environment.
Dewar tanks are commonly used in scientific research, industrial applications, and medical facilities for a variety of purposes, such as preserving biological samples, freezing and storing cells, and providing a continuous supply of cryogenic substances for experiments and medical treatments.
Dewar Cylinder Main Technical Parameters:Full Volume: 80L/100L/175L/195L/210L/232L/410L/500L/1000LWork Pressure: 1.37MPa/2.3MPa/2.88MPa/3.45MPaInner Tank Design Temperature: -196Shell Tank Design Temperature: -20ºC~+50ºCInsulation: Vacuum with Multi-layer WrappedStored Medium: LO2,LN2,LAr,LCO2,LNGInner Tank Material: SS304 08 or SA240Shell Tank Material: Q345R or SS304 08
Due to their efficiency in maintaining extremely low temperatures, Dewar tanks play a crucial role in various fields that require the storage and handling of cryogenic materials.
Product Parameters
We are a professional manufacturer of customized cryogenic liquid nitrogen Dewar tanks, please tell us your needs, and contact us to obtain customized information about Dewars.

Dewar Tank Main Technical Parameters
Type	Nominal volume (L)	Working pressure (MPa)	Empty weight (Kg)	Maximum theoretical liquid filling capacity(Kg)					Gas cylinder size (mm)	Safety valve (MPa)	Rupture disk (MPa)
				LNG	LO2	LN2	LAr	LCO2
DPL Series - Vertical Cylinders	80	2.3		31	87	62	107	84	φ516*907	2.41	3.6
	100	2.3	95	38	120	77	133	105	φ516*1037	2.41	3.6
	175	1.37	116	67	190	135	233	183	φ516*1507	1.59	2.4
		2.3	133							2.41	3.6
		2.88	146							3.45	5.17
		3.45	164							4.14	5.17
	195	1.37	125	75	212	150	260	204	φ516*1632	1.59	2.4
		2.3	145	/						2.41	3.6
		2.88	158							3.45	5.17
		3.45	185							4.14	5.17
	210	1.37	135	81	228	162	280	220	φ516*1717	1.59	2.4
		2.3	150	/						2.41	3.6
		2.88	166							3.45	5.17
		3.45	191							4.14	5.17
	232	1.37	148	/	252	/	/	/	φ516*1910	1.59	2.4
	410	1.37	325	157	/	/	/	/	890*870*1770	1.59	/
	450	1.37		/	488	345	599	471	890*870*1850	1.59	/
		2.3	370							2.41	3.6
		3.17	425							3.45	5.17
	500	1.37	360	192	542	384	665	523	890*870*2000	1.59	/
		2.3	407	/						2.41	3.6
		3.17	448							3.45	5.17
	1000	2.3	1033	/	/	454	904	891	φ1200*2182	2.6	3.6
		3.45				297	764	828		4.0	5.4
DPW Series - Horizontal Cylinders	410	1.59	342	158	/	/	/	/	1850*820*1020	1.9	2.4
	499	1.59	353	192	541	383	664	522	2100*820*1020	1.9	2.4
		2.1	406	/						2.86	3.6
		2.5	420							2.86	3.6
		3.45	510							4.15	5.17
	1000	1.59	585	/	1664	1330	1882	/	2100*1172*1400	1.9	2.4
Note: The maximum filling capacity is calculated based on the boiling point of the liquid under normal atmospheric pressure. The actual filling capacity is affected by the liquid temperature and pressure inside the container, which is about 95% of the maximum theoretical filling capacity, and about 90% for natural gas.

Production Process
The gas cylinder is easy to use, safe and reliable, economical and durable. The special features are as follows
1.The support system of the inner tank is made of stainless steel to achieve the purpose of low heat loss and high strength.
2. It is easy to use and can be operated independently by a single person.
3. Store pure cryogenic liquid. Large storage capacity. The gas storage capacity of a DP175 Dewar cylinder is equivalent to more than 18 times the gas storage capacity of a standard high-pressure gas cylinder.
4. The internal pressure of the gas cylinder will rise during the deactivation phase after filling. The gas cylinder has a high-performance insulation system, and its pressure rise rate is low. Under normal circumstances, there is no need to reduce the pressure through a safety valve.
5. The built-in supercharger and vaporizer can realize continuous supply of gas or liquid, and there is no need to install an external vaporizer under the designed dosage.
Note: When filling natural gas, use double safety valves and eliminate the rupture disc in the inner tank.
Caution: Adjusting the top screw of the combined pressure regulator does not accelerate the pressurization speed. Adjusting the top pin of the combined pressure regulator at will will result in combined pressure regulation. The valve will be damaged.


Packaging & Shipping
Dewar Tanks will be packaged by high quality export wooden boxes.
Standard model dewar tanks will be dliveried within 7 days.
FAQ
1. What information needed if we sent you the inquiry of the tanks?
The capacity, working pressure and the working medium is most important, and then your special request is also very important. If possible, tell us the usage, this will help us recommend the most appropriate tanks for you.
2. How about quality of your products?
All the cryogenic liquid tanks are new. All the material come from our direct suppliers, and all confirm with the national standard.
3. How can you guarantee your tanks quality?
For cryogenic liquid storage tank, leaking gas is one of the most important problems, so we make the leak testing more than 5 times to guarantee quality.
4. Do your tanks include the cryogenic pump and vaporizer?
We can also provide cryogenic pump or vaporizer if you need.
