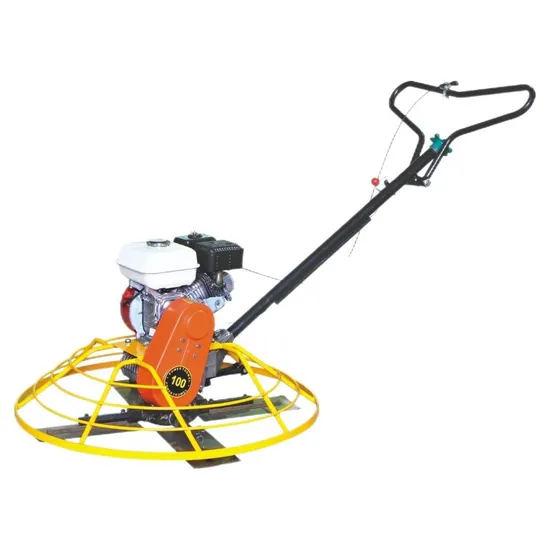

Concrete Trowel Machine for Sale (HMR-80/30")

Product Description

Concrete Trowel Machine for Sale (HMR-80/30")


Product Uses

PRODUCT USES

A power trowel is used to create a level, smooth finish on a large, flat area of concrete, such as an interior floor, or a poured patio slab for a deck. They use single or multiple blades that rotate in a safety cage. Use a pushable concrete power trowel or riding model based on the size of your job. Blades measure from 24 to 46 inches long and come in three types: floating, finish and combined.

Features

FEATURES

1. Over-built gearbox assures long service life.
2. Heavy-weight design to assure a service finish.
3. Height adjustable handle, dead-man switch available, assures operator comfort & easy control.
4. Lifting tube as standard feature allows trowel to be transported on the jo-site with only twopeople.
5. Centrifugal safety switch, shuts the engine down in the event of the operator loosing control of the unit.
6. Screw control ensues precise blade adjustment.
7. Safety designed gtuard ring.
8. Lifting hook is available as optional.
9. Throttle control is available as optional.
TECHNICAL SPOECIFICATION

TECHNICAL SPOECIFICATION

Model	HMR-80
Engine Model	HONDA GX160	Lonxin GF200	Robin EY20
Engine type	4-stroke 25°Single-cylinder with Air-cooled
power	5.5HP	6.5HP	5.0HP
Working speed	70~130 RPM
Pan Diameter	800mm
Working Width	780mm
Blade size	270*150mm (10.5*6")
Cluth type	Automatic centrifugal clutch
N.W / G.W	75KGS / 87KGS
Packing size	86 X 86 X 75 CM	86 X 86 X 75 CM	86 X 86 X 80 CM
Optional Engine: 1.B&S 5..0HP/6.5HP 2. Kohler Ch260 6.0HP 3. EX17 6.0HP

Detailed Photos

ASSEMBLY LINE

Packaging & Shipping

PACKING PICTURE

Factory
