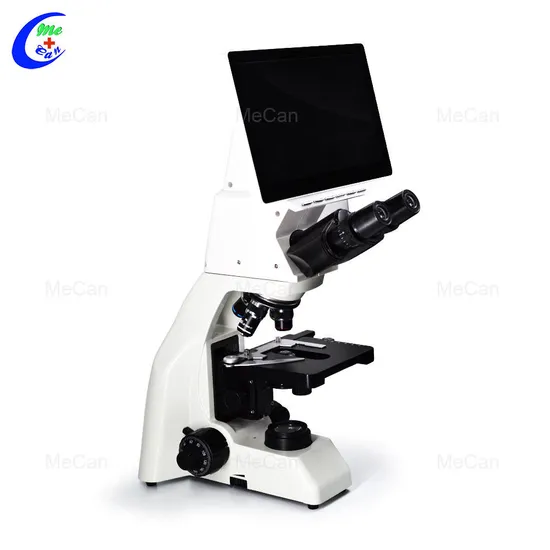

Factory Price Biological Binoculars with Camera Binocular Laboratory Trinocular Stereo WiFi Digital Microscope
| US$680.00-1,120.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MCL2004
Number of Cylinder
Binoculars
Mobility
Desktop
Stereoscopic Effect
with Camera
Kind of Light Source
LED Illumination
Shape
Rectangular Prism
Usage
Teaching, Hospital
Principle
Optics
Principle of Optics
Finite Optical System
Illumination
LED Lamp, Brightness Adjustable,Side LED Lights
Column
Round Column
Viewing Head
Seidentopf Binocular
Focusing System
Coaxial Coarse and Fine Adjustment,Fine Division 0
Condenser
Na1.25 Abbe Condenser
Transport Package
Carton
Specification
standard size
Trademark
MeCan
Origin
China (Mainland)
Production Capacity
1000 PCS/Month
Product Description
Product DescriptionMedical USB 4K Trinocular Blood Biological Digital Microscope with ScreenModel:MCL-20041.Full HD Display: 10.6" HD LCD screen;
2.Full HD Camera: The highest 12M images ,1080P/60fps HD video with memory card(Max:32G) to store inspection results anytime ,no need to connect to PC.;
3.HDMI HD Output, freely connect to big monitor to anaysis 4.Continuing Zoom Range:0.7X~4.5X, Total magnifications:14X~100X.
5.Wireless Connection:Download pictures or videos from the APP to share or process later data;
6.WDR: Improve video clarity in dark;
7.Worktable Size: 380*250*20mm ,suitable for all kinds of inspection and operation tasks;
8.Multiple Measuring Functions: Crosshair, reticle, degree scale, etc.(Customizable) Product Parameters
| Model Parameter | |||
| LCD Screen | Size | 10.6 inch IPS 10.6 Inches IPS | |
| Resolution | 1366*768 | ||
| Optical Parameter | Optical System | Finite Optical System | |
| Infinite Optical System | |||
| Achromatic Objective | 4× N.A=0.1 WD=18 | ||
| 10× N.A=0.25 WD=7 | |||
| 40× N.A=0.65 WD=0.53 | |||
| 100× N.A=1.25 WD=0.13 | |||
| Infinite Semi-Plan Achromatic Objective | 4× N.A=0.1 WD=16.8 | ||
| 10× N.A=0.25 WD=5.8 | |||
| 40× N.A=0.65 WD=0.43 | |||
| 100× N.A=1.25 WD=0.13 | |||
| Viewing Head | Seidentopf Binocular Viewing Head Inclined at 30°,Interpupillary 47-78mm | ||
| Eyepiece | WF10×/18 | ||
| WF10×/20 | |||
| Focusing System | Coaxial Coarse and Fine Adjustment,Fine Division 0.002mm,Moving Range 25mm | ||
| Nosepiece | Backward Quadruple Nosepiece | ||
| Stage | Double Layers Mechanical Stage 140×140mm,Moving Range75×50mm | ||
| Rackless double Layers Mechanical Stage 150×139mm,Moving Range75×52mm | |||
| Condenser | NA1.25 Abbe Condenser | ||
| Illumination | S-LED Illumination | ||
| Digital parameters | Photo Resolution | 4592*3072 | |
| Camera Pixel | 1200w | ||
| Video Resolution | 1080p/60fps | ||
| Data Output | HDMI | ||
| Wireless Connection | Yes(optional) | ||
| WDR | Yes | ||
| Function | Automatic exposure, exposure offset, automatic white balance, multiple measurement methods, video recording, local storage (maximum memory 32G) | ||
| Storage | SD Card | ||
| Measurement & Position | Yes(Customizable) | ||
| External Interface | Projector/Monitor | ||
| Illumination | LED Lamp, Brightness Adjustable,Side LED lights |
| Focus Range | 60mm |
| Operating Distance | 88mm |
| Column | Round column |
| Bracket Size | 380mm*250mm*20mm |
| Accessory | SD Card |
| Supply Voltage | DC12V |
