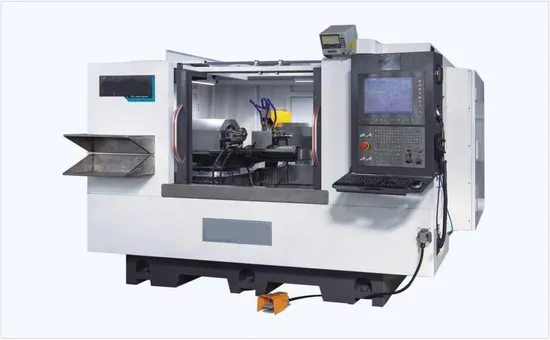

Mgk8320 High-Precision CNC Special-Shaped Cylindrica Grinding Machine

Product Description

Product Description
Main functions and features
♦ This machine is a three-axis linkage CNC high-speed grinder, used for grinding eccentric shafts, cams and other special-shaped outer contours. It has the characteristics of high efficiency, high precision and simple operation.
• The machine is controlled by the Japanese LYNUC CNC system. Three-axis linkage is controlled by digital AC servo drive to realize follow-up eccentric grinding. Grinding the outer circle and special-shaped outer circle contours in one clamping.
♦ The CBN grinding wheel is directly driven by a static piezoelectric spindle, which has the characteristics of high rotation accuracy, good accuracy retention, and strong rigidity. CBN grinding wheel linear speed above 80m/s
• The headstock (C axis) is directly driven by the high-precision servo torque motor to drive the spindle, and is equipped with imported grating to ensure stable and reliable grinding.
• The grinding wheel dressing method is the front diamond roller, which realizes automatic dressing and automatic compensation. It can dress the outer circle, end face and circular arc
♦ Crankshaft and camshaft CNC grinding software with independent intellectual property rights.
Product Parameters

Description	(unit)	MGK8320*300
External grinding diameter	(mm)	φ5~φ200
Maximum grinding length	(mm)	250Center distance
XMax.stroke ofX-axis	(mm)	370
ZMax.stroke of Z-axis	(mm)	270
X(,)
X-axis linear motor thrust (feed axis, workpiece headstock axis)	(Nm)	2200
X(,) X-axis servo motor power (feed axis, wheelstock axis)	(kw)	1.5
()Workhead motor power(direct drive)	(Nm)	1500
Speed range of headstock motor	(rpm)	0-100
() Working head rotation angle (standard configuration is manual) rotary type () Spindle speed of grinding wheel (standard configuration is electric spindle)	(Deg) (rpm)	±15 4000()electric spindle
Wheel size	(mm)	φ400*40*203
Linear speed of grinding wheel	(m/s)	80
X/ZX-axis/Z-axis minimum feed unit	(mm)	0.001
X/ZX-axis/Z-axis minimum analytical unit	(mm)	0.001
(DD)The minimum rotation angle of the headstock (special configuration can add DD motor to automatically rotate)	()	0.001
Total capacity of motor	(KW)	18

Detailed Photos
Our Advantages

Who We Are?
Founded on March 30, 2016, HANMING aims to provide customers with excellent products and services and industrial complete equipment solutions.
HANMING has always been standing in the perspective of every customer to deal with problems and ensure the timely and efficient handling of problems. Our salesmen are experienced senior marketing engineers who have been working in the industry field for many years, and our inspectors are technical engineers, which ensure our professionalism. Our products are mainly metal cutting machine, metal forming machine and other industrial equipment.
What Do We Can Do?
The core competitiveness of HANMING is having a strict quality management system and a team that can provide excellent services. We are familiar with the machine tool industry in China and know the positioning of products in various factories. We will select the most suitable machine tools for customers and ensure that after the completion of the machine tool, we will send quality control team to each factory for inspection to ensure that the machines delivered to customers are high-quality products that have been inspected. Our inspectors are also after-sales service personnel to ensure that every after-sales service problem can be timely communicated with each factory and give timely feedback.
Our Aim:
Relying on the keen market insight, HANMING makes forward-looking decisions on the changeable market and actively deals with and overcomes the difficulties encountered by the enterprise in various periods. Today, a steady and pragmatic team leads Hanming forward to open up a new world in the industrial export industry.
