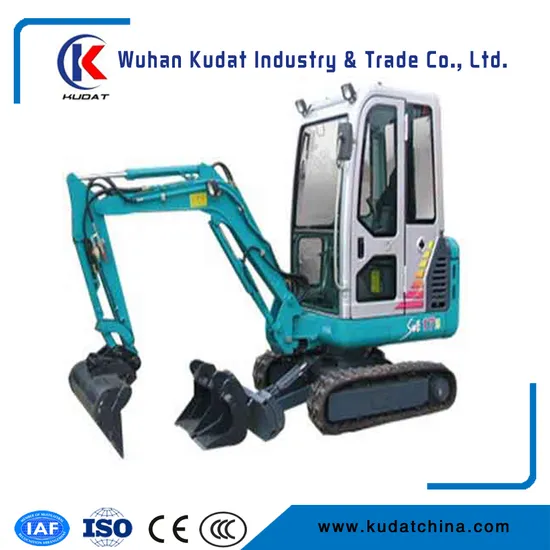

1900kg Mini Excavator with Yanmar Engine and 0.04 Cbm Bucket

Product Description

SWE17B MINI EXCAVATOR SPECIFICATION
1. CE, CQC.
2. Worldwide distributor's
3.European sales and service center
4.Tier 3/Stage III emissions regulation
5.good price
Mini, flexible machine, with super performance
·Special design of travel pressure discharge
The specially designed travel pressure discharge fun-ction of mechanical pilot operation ensures the safety and operability of the machine.
·Additional hammer oil return block
Additional hammer oil return block offers reliable and convenient operation.
·High visibility:for an ever perfect job
Cabin and hood integrated designing. The visibility of SWE15s and SWE17s is great.The narrow dimensions of engine hood provides perfect visibility even at the back.
·Servo-controls and arm supports:being comfortable at work
Installed servo-controls allow precision and flex-ibility to the implement-ation of the most delicate operations.Moreover the comfortable ergonomic arm supports and the narrow lever track reduce the userseffortsand enhance their work precision.
·Extendable Chassis
Assures the machine of both easy-to-pass confined area and working stability.(From 980 to 1310mm)
·Side fuel injection inlet
SWE15SWE17 has a side fuel inje-ction inlet designed to ensure safety and convenience.

Main Parameters
Operating weight:rubber track	1870kg
Standard bucket capacity	0.04m3
Bucket digging force	13.1kN
UNDERCARRIAGE & SWING
Travelling speed	4.26 / 2.33 (km/h)
Max. gradeability	30°
Swing speed	10.5rpm
ENGINE
Model	YANMAR 3TNV70-SSU
Type	3-cycle, water-cooled, indirect injection
Max. power/rpm	9.9kw / 2200rpm
Displacement	0.854L
Fuel tank	23L
HYDRAULIC SYSTEM
Type	Nachi
Main pump	2 Variable pumps, 1 Gear pump
Max. pump flow	2 x 20 + 14 (L/min)
Max. operating pressure	-
Hydraulic oil tank	35L

Working parameters
WORKING RANGE
A. Max. digging height	3509mm
B. Max. dumping height	2482mm
C. Max. digging depth	2155mm
D. Max. vertical digging depth	1551mm
E. Max. digging radius	3850mm
F. Max. reaching level at ground	3472mm
G. Max. llifting height of blade	211mm
H. Max. digging depth of blade	270mm
R. Min. swing radius	1686mm
Width & height of blade	1310 x 267 (mm)
TRANSPORTATION DIMENSION
A. Track base	1170mm
B. Crawler length	1528mm
C. Ground clearance of platform	498mm
D. Tail swing radius	1080mm
E. Chassis width	980 / 1310 (mm)
F. Standard width of crawler	230mm
G. Min. ground clearance	160mm
H. Max. ground clearance of crawler	381mm
I. Overall length	3820mm
J. Overall height	2378mm
K. Overall width	1170mm

After-sales Service
Warranty
Kudat grants our clients a twelve-month-period or 1500-hours warranty for any machine purchased from us. During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operation. The defective part will be repaired or replaced free of charge at our discretion.

Spare Parts
Kudat is dedicated to provide our clients with genuine spare parts with the highest quality, exact fitness and appropriate function. With our global distributor network, you are guaranteed with fast deliveries and services, wherever you are. Please submit your spare parts request to us, and list products name, model, equipment serial number, description of required parts. We guarantee that your request will be handled quickly and appropriately.

Installation & Maintenance
Kudat is able to provide you with the overall installation of complicated machinery and equipment, for example--crawler crane,concrete batching plant, crushing machines etc.,allowing you to start the normal operation of cranes immediately. After installation, we will make inspection of the whole machine, operate equipment, and provide you with testing data reports of installation and operation.

Training
Kudat offer perfect facilities and comfortable environment and can provide training service to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other trainings, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.

Technical Advice
Kudat can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advices, your machine service life can be significantly prolonged and sustained with high capacity.
