up-128t Plastic Molding Equipment with 200L Tank Volume and 16MPa
| US$14,000.00-15,200.00 | 1 set (MOQ) |
Basic Info.
Model NO.
UP-128T
Type
Tube Head Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Plunger Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Machine Computer
Arcuchi PLC
Machine Weight
3.6t
Tank Volume
200L
System Pressure
16MPa
Transport Package
Film Packing
Specification
4.3*1.15*1.85
Trademark
UP
Origin
Chian
HS Code
8474809090
Production Capacity
500sets Per Year
Product Description

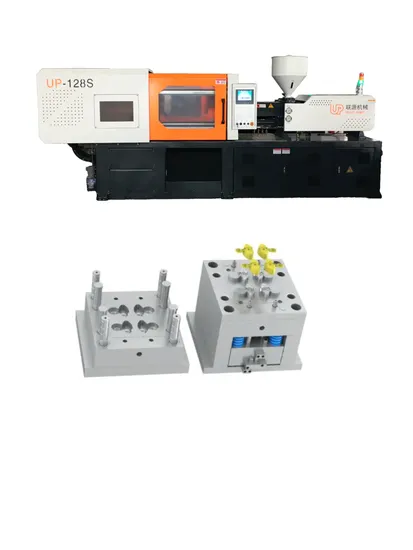

UP-128 Injection Molding Machine
Features:
Servo type injection molding machine
More space between pull rods
Central clamping structure
Famous components
Servo motor energy saving
Low noise, 0.05 second fast response
High precision, stability, and long service life
T-groove pressing plate
Rich spare parts
Better price
Low water consumption
Low maintenance electrical and hydraulic
Reduce power consumption by up to 80%
Flow and pressure output control sensor
Clamping Device:
Optimized formwork design
High rigidity and large pull rod spacing
Platen Layout based on Europe
New ejection system design
Hydraulic drive gear type mold adjusting mechanism
Mechanical safety interlock device
Injection Device:
High-quality linear motion guide
High SpeedâȘ»essure injection structure
Double nozzle cylinder
Special screw barrel design
Hydraulic System:
Dual proportional composite valve
Imported high-quality water pump
Can be equipped with world-famous servo hydraulic system
Servo system with accurate feedback control
Manufactured by Ningbo Union Power Machinery Co., Ltd.
| Technical Parameters | Model UP-128 | ||
| Injection Unit | A | B | C |
| Screw diameter (mm) | 40 | 42 | 45 |
| Shot Volume (cm3) | 227 | 251 | 288 |
| Injection weight (g) | 204 | 1440 | 1636 |
| injection pressure (Mpa) | 203 | 226 | 259 |
| Screw speed (rmp) | 0-200 | ||
| Clamping Unit | |||
| Clamping force (KN) | 1280 | ||
| Open stroke (mm) | 360 | ||
| Max Mold height (mm) | 400 | ||
| Min Mold height (mm) | 150 | ||
| Space between tie bars(mm) | 420x380 | ||
| Ejector force (KN) | 38 | ||
| Ejector stroke (mm) | 100 | ||
| Others | |||
| Pump pressure (Mpa) | 16 | ||
| Motor/driving power (KW) | 11(11.5) | ||
| Heating power (KW) | 7.3 | ||
| Machine dimension (M) | 4.3x1.15x1.85 | ||
| Machine weight (T) | 3.6 | ||
| Oiltank cubage (L) | 200 | ||
