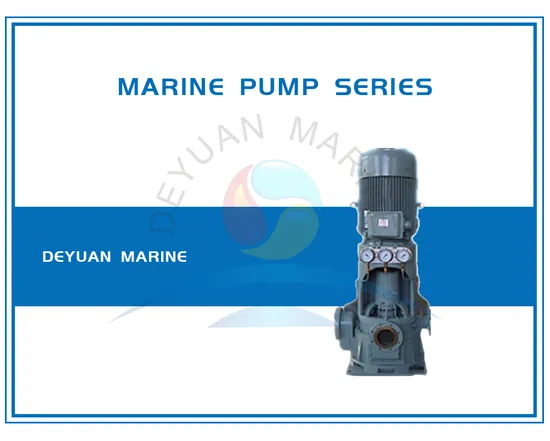

Marine Vertical Centrifugal Pump/Centrifugal Oil Pump
| US$1.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DY090402
Capacity
1350(M3/H)
Head
23.5m
Speed
1780r/Min
Packing
Standard
Transport Package
Wooden Case
Specification
CCS, BV, ABS
Trademark
Deyuan
Origin
China
Production Capacity
100sets/Month
Product Description
Marine Vertical Centrifugal Pump/Centrifugal Oil PumpMarine Centrifugal Pump:
Our centrifugal pump is designed to deliver fresh water,sea water or other non corrosive liquid with temperature less than 80ºC,it usually service as a ballast pump,bilge pump,cooling pump,fire pump or GS pump etc.
Centrifugal pump can be in vertical type or horizontal type.For vertical version centrifugal pump,we have following model for option:CLZ,CLH,CL,CLV,CLN(double stage,double oullet type),CSL(double suntion middle-open).
Aavailable horiztontal centrifugal pump is CWL,CWZ,CWS,CYZ,CIS etc.
If you are looking for any marine centrifugal pump,pls donot hesitate to contact us.
| Type | Main technical parameter (60HZ 3phase,440V) | Motor type and power KW | ||||
| Capacity (m3/h) | Head m | Speed R/min | NPSHR m | Shaft power kw | ||
| CSL1400-280B | 1350 | 23.5 | 1780 | 7.2 | 112.2 | Y315M-4H132 |
| CSL1 400-280A | 1750 | 32 | 1780 | 10 | 190.7 | Y315M1-4H 220 |
| CSL1400-340B | 1550 | 34.5 | 1780 | 7.8 | 182 | Y355M1-4H220 |
| CSL1400-340A | 1800 | 46 | 1780 | 9.7 | 275 | Y355L2-4H315 |
| CSL1 400-400B | 1350 | 69 | 1780 | 7.8 | 302 | 360 |
| CSL1 400-400A | 1550 | 84 | 1780 | 8.5 | 417.1 | 460 |
| CSL1 500-340X | 2040 | 20 | 1780 | 10 | 146.3 | Y315L2-4H200 |
| CSL1 500-340B | 2300 | 24 | 1780 | 10 | 192.7 | Y355M2-4H250 |
| CSL1 500-340A | 2700 | 31 | 1780 | 10 | 292.2 | 360 |
| CSL1 500-390B | 2488 | 40 | 1780 | 12.3 | 317.5 | 360 |
| CSL1 500-390A | 3000 | 50 | 1780 | 9.5 | 492.2 | 550 |
| CSL1 500-440B | 2400 | 50 | 1780 | 9 | 389.1 | 460 |
| CSL1 500-440A | 2800 | 68 | 1780 | 10.2 | 610 | 680 |
| CSL1 600-420A | 2700 | 22 | 1190 | 8.5 | 198 | Y355L1-6H250 |
| CSL1 600-510B | 2988 | 32 | 1190 | 6.6 | 302.8 | 360 |
| CSL1 600-510A | 3800 | 36 | 1190 | 6.7 | 438.3 | 500 |
