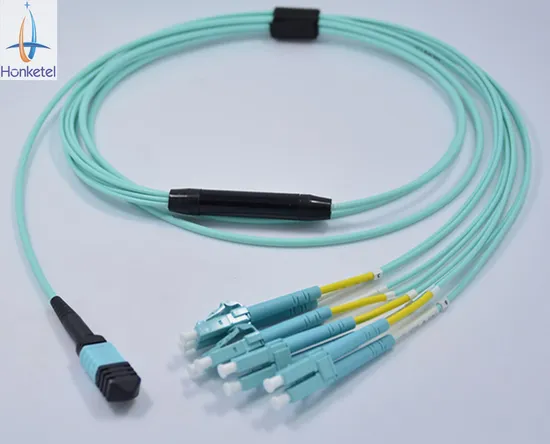

12 Cores MPO to LC/Upc Breakout Cable Single-Mode Multi-Mode Communication Cable

Product Description

MPO/MTP Breakout Cable Multi-Mode LC/UPC Duplex 12 Fibers LSZH
Description:
MPO/MTP patch cord are designed to high density multi fibers solutions, fit for different installation environment and easy to in-stall between the trunk line, data centers and buildings. Our patch cord are 100% factory tested and can meet your special requirements. All the MPO/MTP connects comply with Telcordia GR-1435-Core Compliant.
Features:
High performance in Insertion loss & Return Loss 100% pre-terminated tested.
Supports 40G and 100G network applications.
Jacket material: LSZH, OFNR, OFNP available.
Jacket color: Aqua, Yellow or customize.
Supports up to 4F,8F,12F, 24F, 48F, 72F, 96F, 144F, customized products are available.
Application:
Active dvice termination
Telecommunication networks
Metro
Local Area Networks (LANs)
Data Processing networks
Test Equipment
Premise installations
Wide Area Networks (WANs)
Specification:

Specification
Connector	MPO to MPO	Gender	Female to Female
Fiber Mode	SM,MM	Jacket OD	2.0mm ,3.0mm or customized
Fiber Count	12	Wavelength	850nm
Cable Length	1m-30m	Jacket Color	Aqua
Cable Jacket	PVC	Insertion Loss	<=0.6dB
Durability	>=500 times	Return Loss	>=20dB
Operate Temperature	-40~75°C	Customized	Yes
