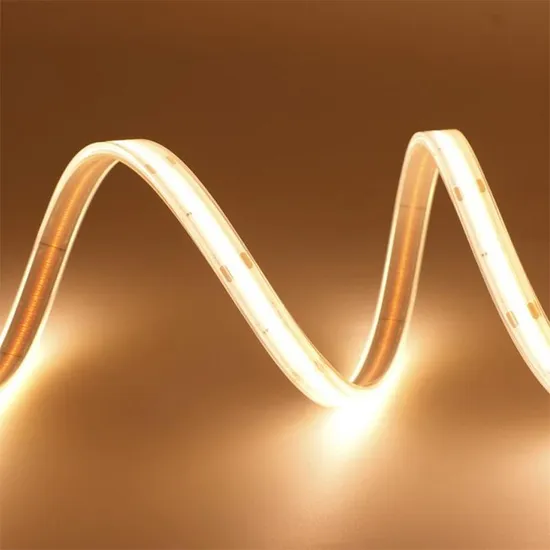

12V/24V Single Color 3000K 4000K 6500K COB LED Strip 320LEDs/M Flexible LED Strip for LED-Lighting-Decoration

Product Description

12V/24V Single Color 3000K 4000K 6500K COB LED Strip 320leds/m Flexible Led Strip for Led-lighting-Decoration PRODUCT PARAMETER

Model No.	SCCOBB320X1
PCB Width	8MM
LED Quantity	320Leds/m
PCB materials	Double-sided pure copper board
Voltage(V)	12V DC
Rated Power(W)	15W/M
Luminous(lm/m)	2200lm/m
LED Chip Brand	Epistar
LEDs material	99.99% pure gold wire
LEDs Supplier	Honglitronic (For optional)
CRI(RA>)	CRI80(CRI 90 optional)
Color	Single
Color Tempertature	Single
IP Rate	IP20 (IP67/IP68 optional)
View Angle	120°
Product Size(mm)	8*5000mm
Package(m/rol)	5M/roll(1m/roll,10m/roll Customized length available)
Working Temperature(ºC)	-20-60
Cutting Unit	19mm
Adhesive Tape	9495 3000LSE 3M tape
Dimmable	Yes
Certificate	UL, CE, RoHS, FCC.
Warranty	1 Year

Explore our extensive COB product list and discover the future of LED lighting:

Product name	LED/m	Pixel/m	Volt	W/m	PCB Width	Color	Cut Length	CRI
RGBW COB Strip	560LED		24V	16W	10	RGBW		>90
RGB COB Strip	768LED		24V	14W	10	RGB	31.6mm	>90
	756LED		12V	14W	10		23.81mm
	840LED		24V	15W	10		31.26mm
CCT COB Strip	608LED		24V	14W	10	CCT	26.31mm	>90
White color COB Strip	312LED		12V	8W	8mm	2700K 3000K 4000K 6000K RED/BLUE/GREEN/PINK/COLD BLUE	19.23mm	>90
	312LED		24V	8W	8mm		38.46mm	>90
	320LED		12V/24V	8W	8mm		50mm	>90
	320LED		5V	8W	8mm		25mm	>90
	384LED		12V/24V	10W	8mm		41.66mm	>90
	384LED		12V/24V	10W	5mm		41.66mm	>90
	480LED		12V/24V	11W	8mm		50mm	>90
	528LED		12V/24V	14W	10mm		45.45mm	>90
Addressable COB Strip	240LED	240PIXEL	5V	21W	10	Full color		>90

OUR ADVANTAGE
1. TUV CE, FCC, CE, RoHS, IEC/EN62471 certificates.
2. High CRI >95Ra, super brightness, ideal for restaurant and super market, make everything looks more real.
3. We do large stock materials for products to keep the same color temperature and PCB and stable quality for each batch.
4. Quick delivery time 3-5 working days
FEATURE
1. Good solution for linear light. It perfect achieve the Dot-Free lighting effect even if without any profile or PC cover.2. Continuous and uniform linear illumination, with soft and elegant light, no glare.3. Adopt Flip-Chip technology, no dead light risk.4. Single point's current is small, which provides good heat dispersion, long life span and low luminous decay.5. More flexible and bendable than the traditional led strip, it has a bending radius of only 5mm, so it can be any shape you want.6. Suitable for furniture, KBB market or any corner application.
7. It's your new best choice for Lighting Market.
SAFETY AND EASY INSTALLATION
Work under DC24V, low voltage for human safety, low power consumption, energy-saving, super-bright but running with low temperature.
It comes with self-adhesive 3M tape on its back, so you can fix it on any dry and flat surface without any screws and clips.
IP20 Non-waterproof
IP65 Silicon Glue Covering Waterproof
IP67 Silicon Tube Waterproof
IP68 Silicon Tube and Silicon Glue Filled Waterproof
1. Environmental protection and safety: High-quality ultra-bright LED light-emitting diode, low power consumption, low heat generation, low voltage power supply, high safety and reliability.
2. Colors are rich and varied: full-color products after the preparation of controllers can be interchangeable in three and seven colors.
3. Long life: The average life is 50,000 hours.
4. Easy and free cutting and welding: You can cut and weld all kinds of lamp length according to the above cutting mark.
5. Softness: The flexible FPCB board is used as the base plate, which can be docked, bent, cut and fixed on the concave and convex surface at will.
6. Light and thin: suitable for installation in narrow space.
7. This soft light bar has a lot of changing effects. It can realize more than 100 different changing effects in the controller, such as flickering, chasing, jumping, clockwise running, counterclockwise running, monochrome running, discolored running, single chasing from beginning to end, running water, simulating lightning and so on.
LED STRIP APPLICATION
1. Can be used for home lighting,commecial lighting,etc...
2. Architectural lights for canopy, corridor, window, archway.
3. Backlight or edge lighting for signage.
4. DIY lights for home using.
5. Path and contour marking.
6. Decorative lights for holiday, event, show, exhibition.
7. Special light effect for art gallery and glass-made items.
PACKING AND SHIPPING
1. Packaging: 5 meters/roll, box packing (132x132x15mm), 100 rolls per carton
2. Delivery time: Normally about 3-5 working days if less than 2000 meters.
3. Shipping by DHL, FedEx, UPSExpress, or Air Freight and Sea shipment.
AFTER-SALE SERVICE
1.We will send the technical material English version user manual, installation manual and maintenance manual Service
2. Provide free technology support by phone and e-mail
3. We provide training to replace the broken part
4. Two years guarantee: In guarantee period, we provide the free new part for replacing.
