Hot Sale Vertical Machining Center Vmc1160 Vmc1270 Vmc1370 CNC Milling Machine

Product Description

Product Description

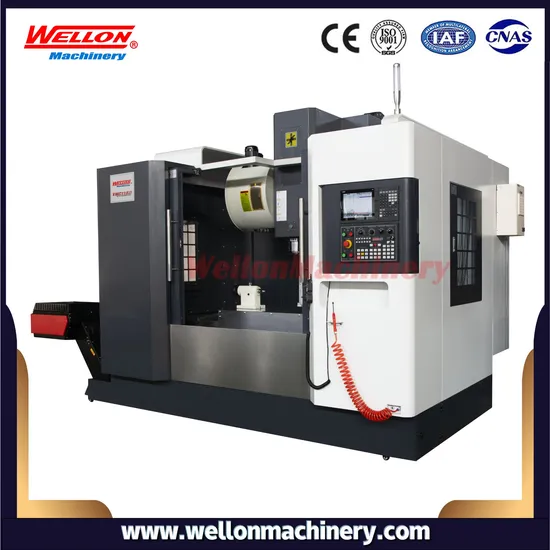

Vertical Machining Center VMC1160 VMC1270 VMC1370 CNC Milling Machine


Detailed Photos

Product Parameters

Main configuration & accessories:
1. Resin sand casting;
2. X, Y, Z rails adopt stainless steel telescopic cover;
3. Taiwan production pneumatic cylinder;
4. Taiwan ATC, carousel type and disc type are available as option;
5. Headstock balancing system have heavy casting or nitrogen balance system as option;
6. Full enclosed cover;
7. Rigid tapping;
8. Work lamp;
9. USB and Internet interface;
10. Manual pulse generator (MPG);
11. Centralized automatic lubrication system.
12. Cooling system.
13. Heat exchanger for electrical cabinet ;
14. Leveling blocks & bolts;
15. Toolbox and tools;
Technical Parameter:

Item	VMC1160	VMC1270	VMC1370
X axis travel	1100	1200	1300
Y axis travel	600	700	700
Z axis travel	600	600	700
Spindle nose to worktable	120-720	150-800	110-810
Spindle center to column	650	710	750
Leadscrew diameter X,Y,Z	Φ40	Φ40	Φ45
Linear guideway width X,Y,Z	45/45/45 (Roller)	45/55/45	45/45/45
Worktable Length	1200	1300	1400
Worktable width	600	700	700
Max loading capacity	800	1000	1200
T-slots(NO./width/pitch)	5*18*100	7*18*100	5*18*110
Spindle taper	BT40-150	BT40-150	BT40-150
Spindle speed	8000	8000	8000
Main motor power	7.5/11	7.5/11	15/18.5
Fast moving speed (X/Y/Z)	36/36/30	36/36/24	30/30/24
Cutting speed	1-10000	1-10000	1-10000
Feed motor torque	22/22/22	22/22/22	37/37/37
Feed motor power	3.0/3.0/3.0	3.0/3.0/3.0	4.5/4.5/4.5
Capacity	Arm type 24	Arm 24	Arm 24
Max tool diameter	120	120	120
Max tool weight	8	8	8
Max tool length	300	300	300
Positioning accuracy	0.008	0.008	0.008
Repeat accuracy	0.005	0.005	0.005
Length	3300	3450	3800
Width	2400	2500	2560
Height	3000	3050	3200
Weight	6300	7300	9500

Standard accessories:
Fanuc 0i-MF(5) controller
8000rpm belt type spindle from Taiwan
BT40 Spindle tape
24 tool ATC from Taiwan
Ball leadscrew from Taiwan
3-axis Linear guideway from Taiwan
Full closed covers
MPG
Air conditioner in cabinet
USB+ Ethernet Interface
Work lamp
Safety door
Chain type chip conveyor
Tir-color alarm lamp
Air gun+water gun
Automatic lubricating
Coolant system
High pressure flushing system
Rigid tapping function
Tools and toolbox
Optional accessories:
Direct driven spindle from Taiwan with 12000 rpm
Spindle oil cooler
Spiral type chip conveyor
Nitrogen balance cylinder
Spindle center water spray 20bar
Spindle center water spray 30bar
BBT40 Spindle taper
SK40 Spindle taper
Tool probe,TS27R Renishaw
Workpiece measurement device OMP60 Renishaw
Oil Skimmer
Company information

Packaging & Shipping



FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.
