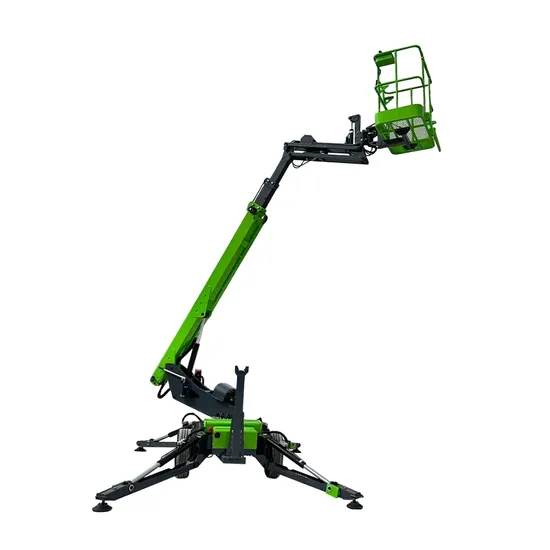

12m 18m Morn Trailer Mounted Aerial Tow Behind Boom Lift
Basic Info.
Model NO.
ATB0.2-16
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane, Tree Care and Maintance
Lift Mechanism
Articulated Lift
Carrying Capacity
Special Weight Level
Moves
Vehicular
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
CE, ISO 9001
Working Height
18 M
Outreach
11 M
Load Capacity
200 Kg
Lifting Power
AC / Battery / Engine / Dual Power
Moving
by Car or Truck Tow
Use
Hydraulic Manual Towable Boom Lift Instead of Ladd
OEM
Lift Height, Traction Drive, Lift Power
Safety Parts
Manual Down, Double Brake System
Spare Parts
Oil Ring, Seal Ring, Travel Switch
Transport Package
Film Packed and Load in One 20FT Container
Specification
package size 5.4*1.6*1.9m
Trademark
MORN
Origin
China
HS Code
8428909090
Production Capacity
10 Sets Per Month
Product Description
Basic Parameters:| Item | ATB0.2-16 |
| Platform size(mm) | 900*700 |
| Rated capacity(kg) | 200 |
| Lifting height (m) | 16 m |
| Max. work height (m) | 18 m |
| Horizontal length(m) | 11 m |
| Guardrail height (m) | 1.1 |
| Turn around angle(°) | 360 |
| Power | AC / DC/ Engine / Dual power optional |
Model List
| Model | Platform Size (mm) | Lifting Height (m) | Load Capacity (kg) | Working Radius (m) | Overall Size (mm) | Weight (kg) |
| ATB-8 | 900*700 mm | 8 m | 200 kg | 5.5 m | 5200*1680*2100 | 1850 kg |
| ATB-10 | 900*700 mm | 10 m | 200 kg | 5.5 m | 5200*1680*2100 | 1850 kg |
| ATB-12-1 | 900*700 mm | 12 m | 200 kg | 6.5 m | 6200*1680*2100 | 1950 kg |
| ATB-12-2 | 900*700 mm | 12 m | 200 kg | 8 m | 4700*1680*2100 | 2100 kg |
| ATB-14 | 900*700 mm | 14 m | 200 kg | 8.5 m | 5700*1680*2100 | 2400 kg |
| ATB-16 | 900*700 mm | 16 m | 200 kg | 11 m | 5700*1680*2200 | 2500 kg |
| ATB-18 | 900*700 mm | 18 m | 200 kg | 11 m | 6500*1800*2250 | 3800 kg |
MORN China 16m 12m 14m 18m 20m Hydraulic towable telescopic electric boom man lift cherry picker lift spider platform lift
Trailer Boom Lift is specifically engineered for those tricky, high-up, hard-to-squeeze-into jobs.
They're space efficient, both when in use and folded up for storage, as it's able to move around in narrow spaces easily, and be folded up for compact storage.
1, WORKING CAGE
Strong basket to insure safety.
Hands prevent folder, protect user's hands from collision with obstacles.
Metallic paint on appearance is featured by anti-ultraviolet radiation, corrosion resistance and brightness.
2, KEY PARTS WORKING CAGE
Retractable ladder, convenient.
Abrasive floor on the platform.
Easy operated stainless steel lock on the door.
Strong folded leaf.
3, KEY PARTS WORKING CAGE
LED Light on the basket for night working.
Rainproof controller on the basket, easy to operate with English marking.
4, CYLINDER UNDER WORKING CAGE
Keep the basket more steady and more safety.
Increase working range.
| Model | ATB0.2-8 | ATB0.2-10 | ATB0.2-12 | ATB0.2-14 | ATB0.2-16 | ATB0.2-18 |
| Platform height | 8 m | 10 m | 12 m | 14 m | 16 m | 18 m |
| Working height | 10 m | 12 m | 14 m | 16 m | 18 m | 20 m |
| Load capacity | 200 kg | 200 kg | 200 kg | 200 kg | 200 kg | 200 kg |
| Platform size | 900*700 mm | 900*700 mm | 900*700 mm | 900*700 mm | 900*700 mm | 900*700 mm |
| Dimensions(mm) | 5400*1600*1900 | 5400*1600*1900 | 5800*1800*2200 | 6550*1660*2130 | 7000*1800*2250 | 7200*1800*2300 |
| Weight | 1600 kg | 1600 kg | 1800 kg | 2500 kg | 2800 kg | 3800 kg |
| Working radius | 4.5 m | 4.5 m | 7 m | 7 m | 8 m | 8 m |
| Wind level | <=5 | <=5 | <=5 | <=5 | <=5 | <=5 |
| Units for 40GP | 3 units | 3 units | 3 units | 3 units | 2 units | 1 units |
