CNC Double Heads Interior or Ouer Polishing Machine, Automatic. Bottom and Side Polished/ High Efficiency and Productivity. No Need Manual

Product Description

Product Description

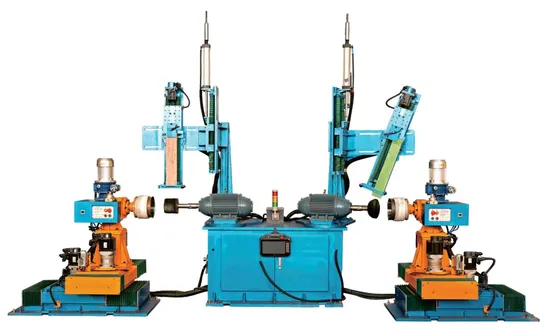

2MB4220-CNC double heads interior polishing machine is a new generation of digitally controlled polishing machines continuously developed on the basis of our series of products. The overall layout of the machine is a horizontal separate design, with two grinding wheels and a waxing mechanism in the middle, and two workpieces symmetrically distributed on the left and right sides. The main components of the machine are made of high-strength cast iron and high-quality alloy structural steel, and undergo a complete heat treatment process to eliminate internal residual stress and improve material mechanical properties, making the machine sufficiently rigid and highly stable, thereby obtaining strong cutting force, significantly improving production efficiency and polishing quality. At the same time, the control system of this machine adopts "high-speed field bus" technology, which can achieve high-speed and accurate polishing process control of the machine. This machine can form an automatic production line with models such as bottom polishing and edge polishing, and is mainly suitable for mass polishing production of inner surfaces of soup pans, frying pans, frying pans, and other products.
Product Parameters

Function	Inner polishing
Polishing wheel set	Two
Size of workpiece	Dia.:Φ140~380mm;H: 250mm
Weight of workpiece	≤20Kg(Including mold)
Size of abrasive wheel	Dia.:≤Φ200;Height: ≤160 Inner hole dia.:Φ25
Motor power	Abrasive wheel motor: 7.5KW×2	X axis: 1.5KW×2
	Workpiece motor:0.75KW×2	Y axis: 1.5KW×2
	Wax motor:0.75KW×2
Total power	24KW
Speed	Abrasive wheel: 2900rpm Workpiece:28~140rpm
Waxed way	Solid wax
Workpiece holding	Vacuum adsorption(gas electric interlock: the machine cannot be started when workpiece is not tightly sucked)
Dimension	About 3900×2300×3100

Company Profile
Packaging & Shipping
FAQ
Q1: How is the warranty?A1: Warranty time is 12 months after BL date.Q2: Can we visit your factory before order?A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking. Q3: Do you have a stock?A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.Q4: What's the MOQ?A4: One set only.Q5: Can you provide customized machines?A5: Yes, we can design and manufacture according to your specific requirements.
