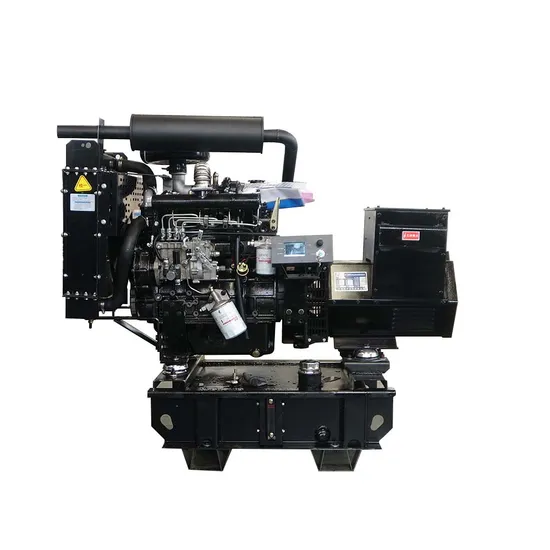

Weifang 490 Agricultural Drone Charging 30kw Diesel Generator Set
| US$1,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZH490ZD
Type
Basic Diesel Generator
Installation Method
Fixed
Stroke
Four Stroke
Cooling Method
Water Cooling
Output Type
AC Three Phase
Speed
Speed
Conditions of Use
Land Use
Usage
Common Units, Standby Unit, Emergency Crew
Landuse Type of Unit
Ordinary
Excitation Mode
AC Rotating Exciter
Combustion Mode
Direct Injection Combustion Chamber
Cooling Mode
Forced Water Cooling
Start Mode
Electronic Start
Lubrication Mode
Pressure and Splash Type
Transport Package
Plywood Case Packing for Open Type
Specification
small
Trademark
YAG
Origin
China
HS Code
850211
Production Capacity
3000sets
Packaging & Delivery
Package Size
1700.00cm * 700.00cm * 110.00cm
Package Gross Weight
500.000kg
Product Description
Product Description Technical specification parameters of 30KW diesel generator set| Unit model:LT-W30GF | Steady state voltage adjustment(%):≤±1 | ||
| Rated power:30KW | Voltage fluctuation rate (%):≤±0.5 | ||
| Rated power factor:COSΦ=0.8 | Transient voltage adjustment rate (%):+20~-15 | ||
| Rated output voltage:220V/380V | Load abrupt voltage stability time (s):≤2 | ||
| Rated current:130A/54A | Steady state frequency adjustment rate (%):≤±1 | ||
| Rated frequency:50Hz | Frequency wave rate (%):≤±2 | ||
| Rated speed:1500rpm | Transient frequency adjustment rate (%):+10~-7 | ||
| Start mode:Electric | Load mutation frequency stabilization time (S):≤3 | ||
| 30KW diesel generator configuration | |||
Diesel engine | Brand | LEITENG | |
| Model | ZH490ZD | ||
| Rated power | 30KW | ||
| Cylinders | 4 | ||
| Bore * stroke(mm) | 90*105mm | ||
| Type | Straight line, Water cooled,Four stroke | ||
| Intake mode | Turbocharged with intercooled | ||
| Combustion mode | Direct injection combustor | ||
| Displacement(L) | 3.61L | ||
| Fuel consumption rate (g/kw.h) | ≤230g/kw.h | ||
| Type of Governor | electronic speed control | ||
| Rated Speed(rpm) | 1500 | ||
Alternator | Model | WUXIWEINENG | |
| Rated power | 30KW | ||
| Rated current | 130A/54A | ||
| Rated voltage | 220V/380V | ||
| Frequency | 50HZ | ||
| Speed | 1500rpm | ||
| Power factor | 0.8 | ||
| Phase number | Three phase four wire | ||
| Protection grade | IP23 | ||
| Controller Systerm | 1. The control panel displays the following data: Generator voltage; Output frequency; Engine speed; Battery voltage; Engine running time. 2. The control panel has indicator light fault information: Over speed/low speed; Emergency stop with low oil pressure; High water temperature; Start failed; Battery charger malfunction. 3. The machine will automatically shut down if the following situations occur: Low engine oil pressure; High engine water temperature; Over speed/low speed. | ||
