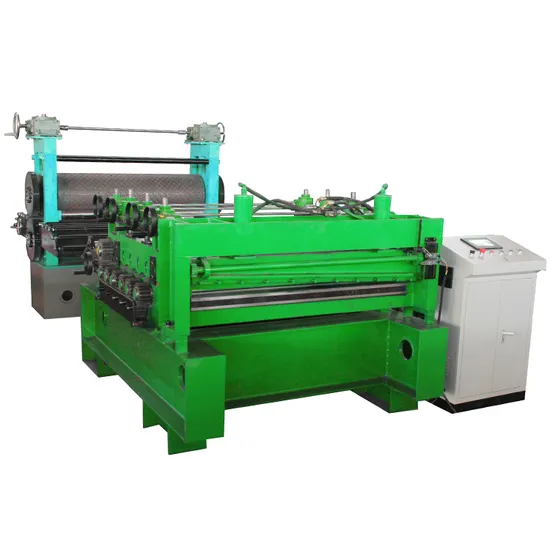

Factory Customized Pattern Steel Panel Embossing Machine

Product Description

Equipment detailed parameters

No.	Parameters
1	Suitable Material	Material		GL, GI, PPGI, 550 MPA
		Thickness		0.8mm-2.5mm
		Width		1250mm
2	Diameter of Embossing roller		¢460 mm
3	Diameter of leveller roller		¢120 mm
4	Embossing Wall panel thickness		0.8-3 mm
5	leveller Wall panel thickness		0.8-3 mm
6	Leveller roller number		11
7	Main motor power		11 KW
8	Hydraulic station power		7.5 KW
9	Main electrical control system		Delta PLC
10	Material of cutter		Cr12MoV with hard treatment, HRC52-68
11	Driving mode		Gear drive
12	Productivity		15m/min
13	Power supply		380V, 50HZ, 3 PHASES

1. Guarantee
In correct operation and maintenance, the machines are 12 months quality guarantee from time of loading, life guarantee repair; within quality guarantee period, except for failures caused by human error, spare parts will be provided freely; after the quality guarantee period, only charge the cost of the spare parts. Free technical supporting and maintenance consulting in lifetime.
2. Installation
If necessary, we can send one technician to your factory to install the machine; you need assist our technician to get the visa and pay for the two-way flight tickets, local accommodation (at least three-star hotel with air condition), food, visa cost. And you need pay 200USD/day for technician extra. The total time will be caculated as per the time that shown on the fright tickets when our technician leaves China and arrives back to China.
