Pnss Series Waste Rubber Tyre and Metal Double Shaft Shredder Machine

Product Description

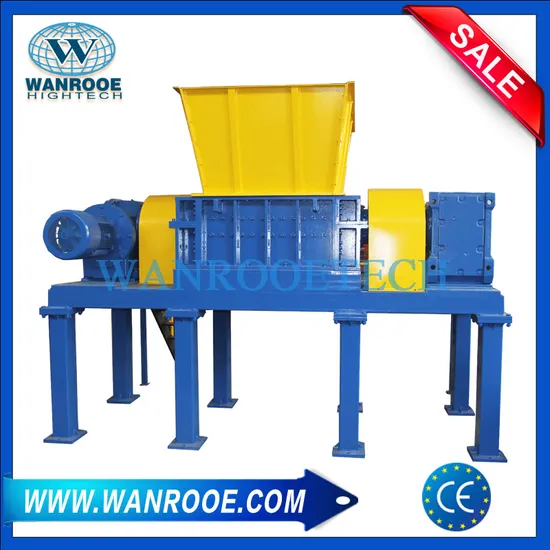

PNSS Series Waste Rubber Tyre and Metal Double Shaft Shredder Machine
Application Areas:
Car Tire Truck Tyre Rubber TDF Shredder has been designed for a wide array of applications and industries, suitable for shredding solid material such as tire, car tire, bicycle tires, motorcycle tires, car tires, truck tires, engineering tires, rubber products, carpet padding, rubber floor material, patio deck, livestock mats, sidewalk and etc.
1.Civil Engineering Applications: They can be used as landfill gas trench collection walls, as backfill for road landslide repair, as vibration-reducing material for railway lines, and as backfill for maintaining walls.
2.Ground and Crumb Rubber: For example, it can be used in paving projects or be moulded into products. Common examples of rubber moulded products include carpet padding, rubber flooring materials, patio decks, livestock mats, movable speed bumps, sidewalks, dock bumpers, railroad crossing blocks just to mention but a few.
3.Carbon Source: Instead of using coke or coal in steel mills, rubber can be used as a source of fuel. In fact, studies have recommended that steel mills should adopt the burning of rubber as fuel instead of coal since coal is mined and can be depleted. Using rubber as fuel is a great way for these mills to go green and reduce their carbon fingerprints.
Description:
The TDF tire shredding Machine system is designed to produce up to 1.2-10 tons per hour of TDF. TDF systems produce a 25mm to 152mm(1"-6") rubber chip, which is used as a coal additive for industrial boilers. Many of these facilities are turning to TDF because it burns hotter and cleaner than coal and is more cost-effective. Rough shreds can be outputted for use or processed further to remove steel from the rubber resulting in Wire-free TDF. This plant is made of two main parts: double shaft shredder and screen.
Technical Features:
1.No polluted water, no waste gas, and no waste residence during the production process;
2.Compact structure, small space, and easy maintenance;
3.Lower energy consumption and good cost performance of investment;
4.shredder is designed with a powerful engine, long working length and aggressive input, Internal feeding volume bigger than traditional and common single shaft shredder machine;
5.The two cutting rotors powerfully grab the feed material;
6.Any overloads caused by foreign material are sensed by the PLC controller and cause the shaft rotation to stop and reverse direction to clear the foreign matter, and then resume;
7.Screen is used to make sure the size of the output can meet each customer's requirement( From 40mm-75mm);
8.Cutters removal and replacement can be carried out safely and simply.
9.Our tire shredders Use a planetary reducer, not a traditional gearbox, and the planetary gearbox has the following advantages: High Efficiency, Greater Stability, Compact Size, Higher Torque Density, Cost-Effective Precision, High Radial Loads.
Versatility
Some plastic shredders lock you into doing it only on way. Our shredders have dual hex shafts and various knife designs that can be easily reconfigured to alter the shredding process to yield any desired output. We offer a large array of easy-to-install bed screens that can be used to qualify the shred size if desired.
The knife widths can be from 3/8" wide to 2" wide. The knife width, tooth size, and tooth count can be configured for processing various types of materials.
Rugged Design
To show the heavy design of these shredders, see this photo of an MS4220 shredder being serviced. The tail end chamber plate has been removed for routine service and you can see the rugged dual shafts, shredder knives, spacers, and an inside view of the cutting chamber.
Reliability
Jordan Reduction Solution shredders have been serving the needs of recyclers and other plastic processors and extruders for over 75 years, making us one of the oldest shredder manufacturers in the U.S. We have many machines in the field still serving various industries that have been in operation for more than 30 years and still running.
Custom Designed Plastic Shredder Systems
From small, hand-fed operations to complete systems, we can help in the design of your entire plastic recycling or shredding needs. We specialize in custom, application-specific systems from several hundred pounds to several tons per hour.
Give us a call and let our staff help you determine the most economical solutions for your plastic shredding needs. Also, visit the shredder videos page to see more of these machines in action.
Product Details:
Technical Parameters

Model	Shredding Motor Power(kw)	Shredding Chamber size(mm)
PNSS-300	7.5	510*300
PNSS-400	7.5	510*400
PNSS-600	7.5+7.5	510*600
PNSS-800	18.5+18.5	600*800
PNSS-1000	22+22	800*1000
PNSS-1200	30+30	1000*1200
PNSS-1400	55+55	1400*1200
PNSS-1600	55+55	1600*1200
PNSS-1800	75+75	1800*1400
PNSS-2000	90+90	2000*1400

Factory
FAQ

1,Are you trading company or manufacturer ?
A:WANROOETECH is a Factory-Outlet Platform for excellent manufacturers only!
2,As the shipping period will take long time, how can you make sure the machine won't be broken?
A:Our machine is film wrapped, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.

3,I am foreign customer, if the product's part is broken, how can get help from you?
A:Some standard configurations you can buy in your local market, such such as SIEMENS Motor.

4,Could i know the process of manufatcuring production after placing the order?
A:Our sales will share video after testing, or take online video when testing machine. Of course, also welcome you to our factory to see machine testing.

5,Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings according to the quantity .

6,Where is your factory located? How can I visit there?
A:Our company is located in ZhangJiaGang City, China, really glad to invite you to come to our office to have a face to face meeting before we build order.

7,We are new buyers, do not know how to buy? Can we use our own freight forwarding?
A:We are a very experienced company, we will provide you with the guidance of security. We have l ong-term freight forwarders partners to ensure delivery goods to various countries for our customers .You can use your freight forwarding.
Our Service
1. One year guarantee for whole machine
2. 24 hours technical support
3. Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer's account.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well
