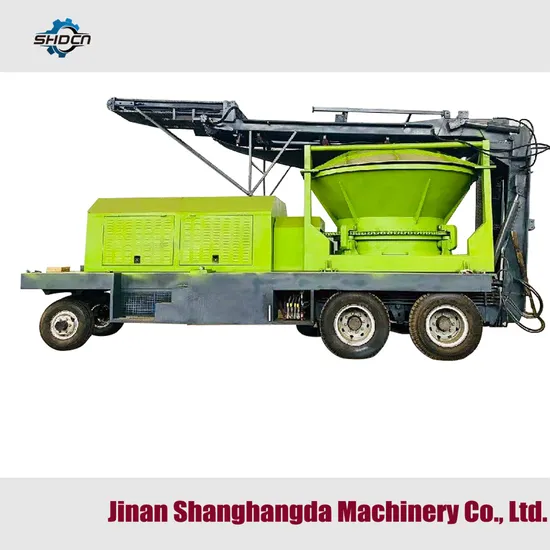

Shd3600 Wood Chip Machine Wood Crusher Popular in Power Plant

Product Description

wood crusher

Description of wood crusher:

Wood crusher, also called root crusher, is a crushing mechanical equipment for all kinds of tree roots, stump, wooden stump and tree bumps. There is a simple and reasonable design of wood chip machine, disk tree stump machine price, easy to operate, compared with similar products is the processing of wood chip products with high capacity, so the choice of disc type wood chip machine is advanced products, but also effective wood chip machine. Disc wood machine can undertake a separate processing, can also cooperate with some transportation equipment or peeling equipment for processing, the machine will log into the feed port, high-speed rotating cutter for cutting material warning, wear-resisting of chrome plated mounted on the cutter blade, disc the stump which machine is good, running a sharp blade will cutting into going to the size of the wood, wood materials are uniform. All models can be customized according to customer needs.
Wood crusher model:

Model	SHD2600	SHD3200	SHD3600
Power(kw)	160	250	315
Capacity(t/h)	10-15	15-20	20-30
Rotor length(mm)	1200	2200	2200

Wood crusher features:
1. This product optimizes the rotor structure and blade material, so that the output is larger and the rotor maintenance is convenient.
2. The bearings are optimized in the form of labyrinth, so that dust is not easy to enter. The bearings are equipped with automatic lubrication device, which does not need manual lubricating oil filling.
3. Optimize the electrical system, adopt automatic control and remote control operation, if the upper rotating part of the machine encounters resistance, it will automatically reverse rotation, so as to protect the main motor from high load operation.
4. The frame of the whole machine is made of square tube manganese steel, which is widened and lengthened to ensure the stable operation of the machine.
Parts show:
Advance of wood crusher:
1. Advanced structure and reliable technology2. High throughput capacity and high quality chips3. Low-maintenance and environment-friendly4. Cost-efficient and space-saving5. Chipping of all kinds of wood6. Guaranteed long running time7. Hydraulic control, simple operation, easy maintenance.
Customer cases:
Rosie

All models can be customized according to customer needs.
