Atc 3 Axis Aluminum CNC Machining Center Drilling Milling Machine

Product Description

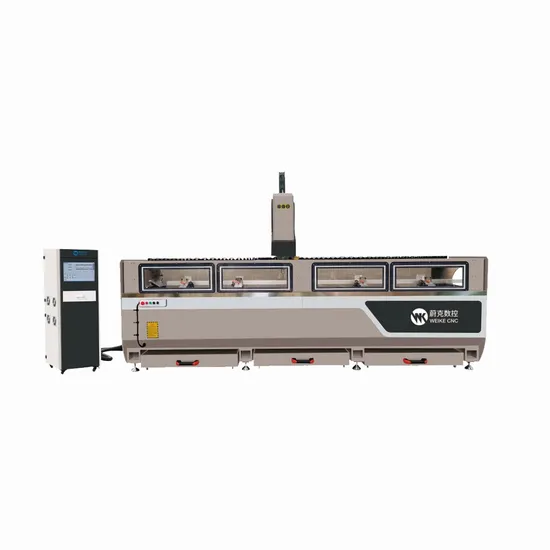

3200mm 3 Axis CNC Machining Center
with Auto tool change
WSZH-CNC-3200
Product Description
1. It is suitable for the processing of round holes, slot holes, key holes, special-shaped holes of industrial aluminum alloy profiles, doors and windows, curtain wall aluminum alloy profiles, and aluminum profile milling, chamfering, plane engraving and other processes.
2. The main shaft adopts air-cooled electric main shaft with a power of 9KW and a rotation speed of 24000 revolutions/min. It has high precision, good safety and high reliability.
3. Equipped with professional CAD-CAM programming software for industrial numerical control system, it can be connected to domestic and foreign door and window curtain wall software and ERP, CAD graphics import, powerful functions, simple operation and high efficiency.
4. The worktable is turned -90°~0°~+90°, the profile can be processed on three sides at one time. When processing deep through holes (shaped holes), deep hole processing can be realized by turning the worktable to improve efficiency and good quality. .
5. The standard 6-bit/8-bit tool magazine can realize continuous and uninterrupted machining.
6. The automatic mercury oil supply system is adopted, and the cutter adopts a system-controlled spray cooling device.
7.The main parts of the machine tool adopt steel structure, all of which have undergone vibration aging and stress relief treatment.

3200mm 3 Axis ATC CNC Machining Center Parameter
Machine dimension	4000*1800*2600mm
Tools magazine	6 Milling drilling bits
Table structure	Heavy duty welded machine body with clamping tooling on it special for clamping aluminum profile
Working Size	X/Y/Z> 3200*400*300mm
Spindle speed	24000/min
X axis speed	60M/min
Y axis speed	48M/min
Z axis speed	20M/min
Control System	Germany HANS PA industrial CNC system is equipped with professional CAD-CAM programming software
Spindle cooling system	air-cooled
Spindle power	9KW
Servo motor and driver	0.75kw *3
Guild rail	20, 25mm
Lubrication system	Auto lubrication pump
Tool setting	Automatic tool setting
Workbench turnover driving method	The motor drives the workbench to flip
Working voltage	380V 3Ph 50Hz or according your need
Working air pressure	0.6~0.8MPa
Weight	2100kg (more or less)

Detailed Photos
Controller:
Germany HANS PA CNC system
Match CAM programming software special for aluminum profile area
(Can connect net, have remote control function, so Give user English training with be very easy)
Screen: English Version

Spindle:
Chinese GMT 9KW Spindle

Motor drives the workbench to flip

Tool Magazine
6 Milling bits

Some holes sample after work
Packaging & Shipping
Take the professional packaging of double-head saw cutting machine as an example:
1. Full film packaging of double-head saw cutting machine;
2. Anti-collision packaging edge;
3. Fumigation-free plywood boxes and pallets with iron strapping.
Company Profile
Shandong Weike CNC Machinery Co., Ltd. is a well-known manufacturer specializing in the research, development, production, and sales of aluminum doors, windows, and curtain wall equipment in China. It's the most large-scale and industrialized production enterprise in the industry.
We have three large production workshops, strong mechanical processing supporting capabilities, a high-quality scientific research team, and a high-tech production team. We have strong research and development strength, a perfect product system, and insist on independent innovation to continuously improve products in scientific and practical ways. The company has several offices in China, forming a one-stop comprehensive service system integrating product development, production, sales, and service.

Certifications
After Sales Service
1. 2-year warranty. Provide a full range of technical support for life

2. From Monday to Sunday, 9 a.m. to 18 p.m.Experienced technician to guarantee lifetime online support (by WhatsApp, WeChat,Email,Facebook,Instagram) in English,Chinese,Hindi,Bengali ,Urdu. So there is no need to worry about technical support due to the time difference.

3. Support local after-sales service. Up to 2024, we have provided on-site services to more than 50 countries and regions: Canada,Mexico, The United States, Ukraine, Russia, Italy, Poland, Spain, Brazil, Indonesia, India, Turkey, Thailand, Vietnam, Australia etc.
